AG 429L Upright Single Door Stainless Steel Door Freezer GNX400BT
Offering 429L of storage capacity, this single-door upright freezer has adjustable wire shelves and comes equipped with castor wheels so it can be easily moved into place. It’s designed for busy commercial kitchens of pubs, bars and restaurants and features self-closing doors, interior LEDs, a digital temperature controller and an automated defrosting system. Made from high-quality stainless steel, the smart exterior is matched by trusted parts such as the Cubigel compressor and Dixell electronics.
R290 Refrigerant is non-toxic, natural and free of ozone-depleting properties. R290 is one of the most climate-friendly and cost-effective refrigerants available. Fridges and Freezers using this refrigerant are more efficient and can reduce your overall energy costs by 28%.
When you buy from AG Equipment, you know you’re getting a twenty-four-month parts and labour warranty from a trusted Australian supplier.

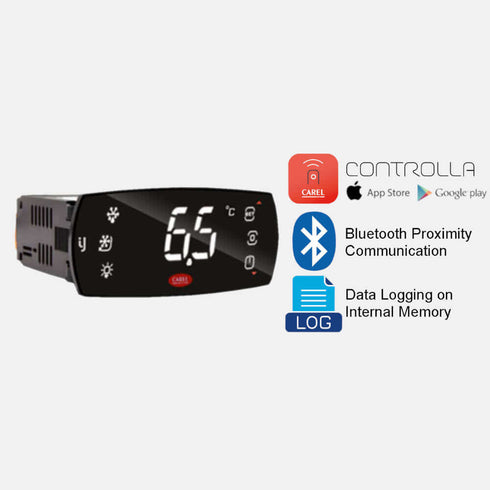

Carel iJF Controller
The new iJF controller is by CAREL with more than thirty years of experience in the refrigeration controller market. Customisation options, aesthetics and functionalities have been considered when commissioning the controller. Its frameless flat design and distinctive appearance blend perfectly into any fridge or freezer appliance.
- Provides Logs
- Fault alarm warnings
- Mobile connectivity with Controlla Application through BlueTooth
Appearance
- Upright
- Single door

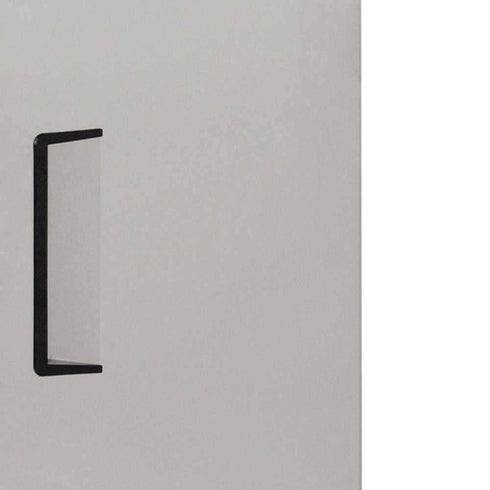

- Recessed Handle
- Carel iJF Digital Controller with NFC and Bluetooth connectivity
- Internal LED lighting
Construction
- Stainless steel body and doors
- 429L capacity

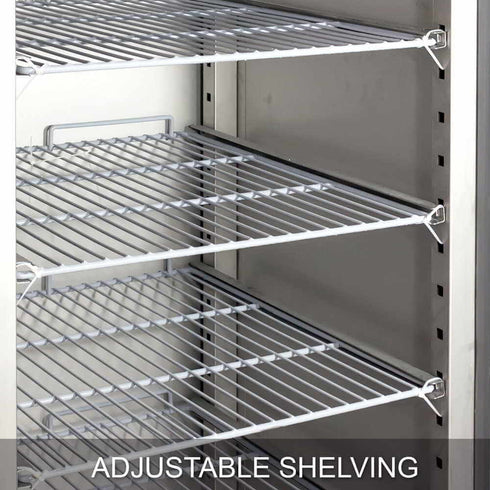

- 5 adjustable wire shelves
- Pre-installed castor wheels
- 43°C ambient temperature
- Cubigel NPY14LA compressor
Operation
- CONTROLLA mobile app available on Android and Apple App Stores
- Electronic and Remote temperature control
- Temperatures between -18°C and -22°C
- Fan-forced ventilated cooling
- Automated defrosting system

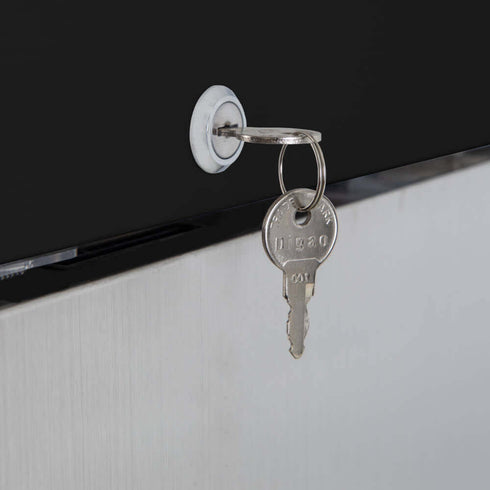

- Lockable door
Installation and Maintenance
- This unit must be placed leaving clearance for ventilation. Please refer to the user manual for details.

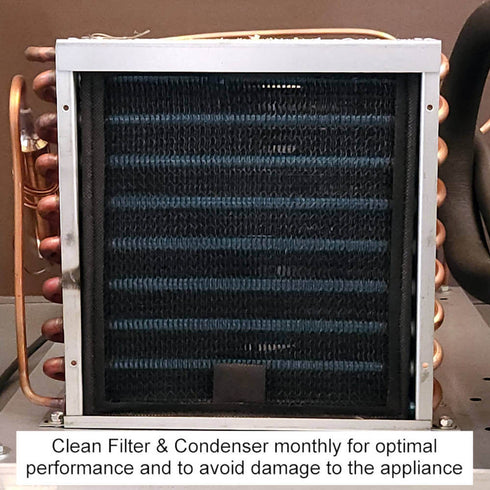

- For optimal performance and longevity, the condenser filter on this unit must be cleaned monthly.
NOTE: Product images are for illustration purposes only, actual products may differ in appearance. Errors and omissions excepted (E&OE)
Specifications
-
Ambient Temperature: 43°c / 65% Humidity
- Capacity: 429 Litres
- Current: 2.3 Amp
- Energy Consumption: 6.12 kWh/24hr
- Frequency: 50Hz
- Input Power: 470W
- Internal Dimension: 564(w) x 582(d) x 1414(h)
- Package Dimension: 710(w) x 740(d) x 2060(h)
- Product Dimension: 680(w) x 710(d) x 2010(h)
- Product Weight: 98 KG
- Refrigerant: R290/115g
- Shipping weight: 108 Kg
-
Temperature Range: -18°c to -22 °c
- Voltage: 220V - 240V
-
Cooling Capacity: 630W
- Warranty: 2 Years Parts & Labour
Please note that in order to be covered under warranty for technician requests, units must have adequate ventilation (ideally 20mm from the sides and back), and regular cleaning of the condenser, once a month, is needed.
Note: This unit is built for commercial use. When the unit is turned on you can hear the compressor running with a noise level. of around 55-60DB. The noise level is the same as a similar commercial unit on the market
Manual of AG 429L Upright Single Door Stainless Steel Door Freezer - GNX400BT:
Exploded Diagram of AG 429L Upright Single Door Stainless Steel Door Freezer - GNX400BT:
