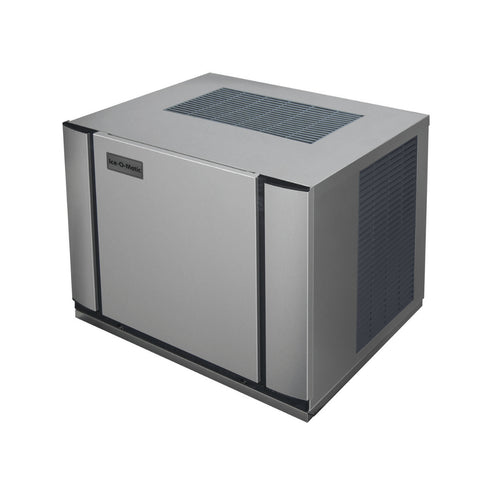

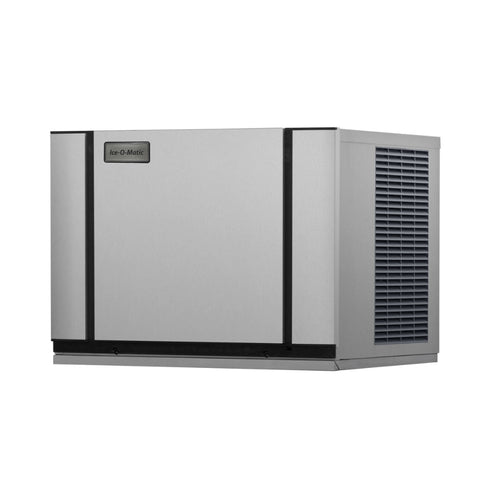

Ice-o-matic Modular Full Ice Maker 265kg Production (Head Only) - CIM0635FA
Product features
- 30" (768 mm) wide space-saving design.
- Produces up to 265kg of ice per day.
- Energy and Environment
- Exceeds new 2018 DOE (Department of Energy) regulations.
- Up to 20% more energy efficient than other models.
- Environmentally friendly, including BPA-free plastic and recyclableparts.
- Sanitation
- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
- Built in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.
- Simple, one-touch controls for sanitization and descaling.
- BPA-free snap-in, snap-out dishwasher-safe components.
- Unique Dual Exhaust - Air-cooled machines are designed to discharge hot air from both the side and top of the unit, increasing installation flexibility and reducing the potential of obstructed exhaust.
- Universal Smart Harness™ control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration
Ice Form
- FULL CUBE DIMENSIONS
- W x D x H (mm) 22 x 22 x 22
- HALF CUBE DIMENSIONS
- W x D x H (mm) 10 x 22 x 22
Options & Accessories
WATER FILTERS
- Ice Machine Model: CIM0635
- System: CD20B
- Note: All modular cube CIM units can be installed with the O3 -Matic™ Ozone Delivery System.
ELEVATION SERIES CUBE ICE MAKER CIM0635
Air Cooled
Please note: air-cooled units require 152 mm clearance for air intake
and exhaust. Top louvers must not be blocked more than 75%.
A. Ice maker potable water in, 3⁄8" FPT.
B. Ice maker water out, 3⁄4" FPT.
C. Hole for electrical connections, 7⁄8".
D. Electrical connection junction box, 7⁄8".
Operating Requirements
- Ambient Temp. Range Air minimum: 10˚C Maximum: 43˚C
- Water Temp. Minimum: 4.4˚C Maximum: 43˚C
- Water Pressure 1.4 Maximum: BAR 5.5 BAR
Dimensions
W x D x H (mm) 768 x 616 x 540
Ice Maker Warranty
COMMERCIAL WARRANTY
Ice Maker: 3 YEARS parts and labor
Evaporator and Compressor: 5 YEARS parts
