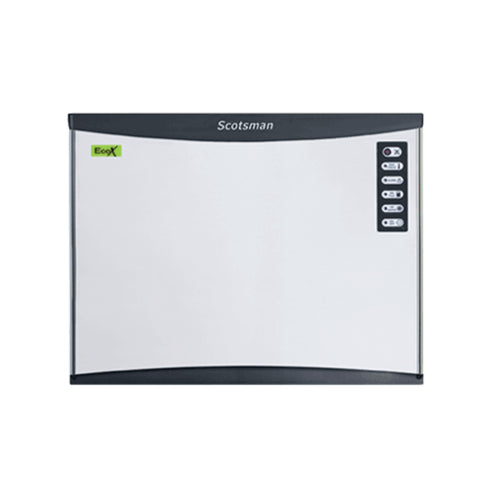

Scotsman EcoX & XSafe Modular Half Ice Dice Ice Maker 208kg Production (Head Only) - NWH 457 AS OX

$4,988.00 EX GST
$5,486.80 inc. GST

SKU: NWH 457 AS OX

BRAND: Scotsman

Hurry! Only 0 Left in Stock!

Dice Cube
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Estimate Delivery Cost:

PRODUCT INFORMATION
Delivery Information
Warranty & returns
REVIEWS
PRODUCT INFORMATION

Scotsman EcoX & XSafe Modular Half Ice Dice Ice Maker 208kg Production (Head Only) - NWH 457 AS OX



Model Number: NWH 457 AS OX
Dimensions: W: 760mm D: 620mm H: 575mm
Packed Weight: 87kg

Other models available:

  • NW 457 AS OX (Produces full dice ice cubes)
 Model Ice Type


NW 457 AS OX
(Full Dice Ice Cube Machine)

Dice cube 10g
W 22 x D 22 x H 22 mm


NWH 457 AS OX
(Half Dice Ice Cube Machine)

Half dice cube 6g
W 10 x D 22 x H 28 mm



Note: Ice production rate is measured with the water temperature at 10°C and an ambient temperature of 21°C.

Ice production per 24 hours

  • Ambient Temperature/ Water temperature
  • 10°C / 10 °C - NW 457 AS OX- 216, NWH 457 AS OX- 216
  • 21 °C / 10 °C - NW 457 AS OX- 204, NWH 457 AS OX- 208
  • 32°C / 21°C - NW 457 AS OX- 157, NWH 457 AS OX- 146

Product Features

  • Head only Ice maker
  • 208kg daily production rate
  • W 22mm x D 22mm x H 22mm, 6g ice cubes
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX hydrocarbons R290 refrigerant gas
  • XSafe - Natural Sanitation System
  • Vertical evaporator spray-system technology
  • Top air discharge - suitable for narrown space installation
  • Front evaporator access for easy servicing
  • One touch button for easy cleaning
  • T304 grade stainless steel exterior
  • Auto-alert indicator lights to show operation status and maintenance
  • Requires storage bin model NB 393, NB 530
  • Includes removable air filter, water & drain hose
  • Warranty: 3 years on parts and labour (except water filter)

Optional extras:

  • NB 393  (178kg storage capacity)
  • NB 530 (243 kg storage capacity)
  • KSC 400-800 (stacking kit for NW 457/ NW 608)

Water consumption

  • Air cooled version:
  • NW 457 AS: 11.5 litres per hour
  • NWH 457 AS: 10.1 litres per hour

Electrical rating

  • Air cooled version:
  • 230-240V, 1P+N+E, 50Hz, 960W, 10A cordset supplied

Energy consumption:

  • NW 457 AS: 20.1kW/hr
  • NWH 457 AS: 20.6kW/hr
  • Installation distance from wall
  • Rear: 100mm
  • Sides: 150mm
  • Operating requirement air temperature: 10-43°C

Dimensions

  • Width: 760mm
  • Depth: 620mm
  • Height: 575mm
  • Nett weight: 73kg
  • Packed weight: 87kg

Water connection requirements

  • Inlet connection: R ¾”
  • Cold water: 5-38°C
  • Pressure: 100-500kPa
  • Water outlet connection: : Ø 20mm


Best known for their reliability and affordability, Scotsman Ice Systems had a wide range to suit various industries

Scotsman is one of the first in the field to research and develop a range of affordable and reliable ice-making machines since the 1950's. It remains the world’s largest ice machine manufacturer in over 100 countries. From restaurants, bars or hotels, to laboratories, hospitals and food processing facilities, Scotsman Ice System serves an important role to cater the needs of different industries by combining efficiency and ease of maintenance in their affordable, innovative and reliable ice making systems.

Manual of Scotsman EcoX & XSafe Modular Half Ice Dice Ice Maker 208kg Production (Head Only) - NWH 457 AS OX:

Brochure of Scotsman EcoX & XSafe Modular Half Ice Dice Ice Maker 208kg Production (Head Only) - NWH 457 AS OX:

Specification Sheet of Scotsman EcoX & XSafe Modular Half Ice Dice Ice Maker 208kg Production (Head Only) - NWH 457 AS OX:
