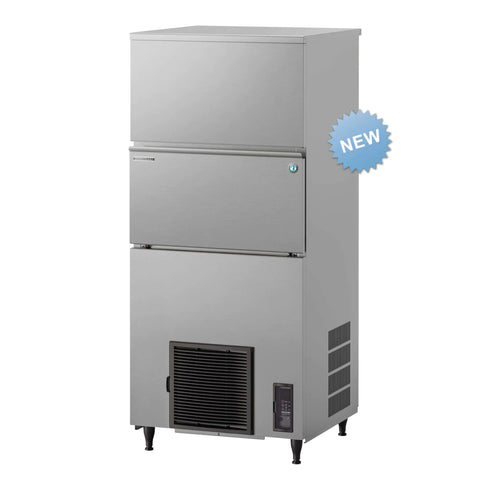

Hoshizaki 145KG Cube Ice Maker - Self Contained - IM-240PE-23

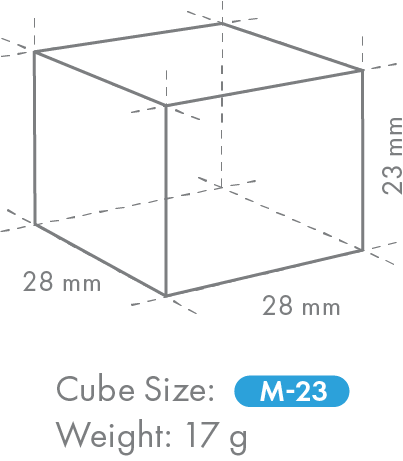

The IM-240PE-23 from Hoshizaki represents the latest evolution of the IM CUBE series—an advanced self-contained cuber designed to produce up to 165kg of Hoshizaki’s world-renowned hard and slowly melting 23mm cubes every 24 hours.
Set Yourself Up for Growth and Success
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Alongside these enhancements, the IM CUBE series continues to deliver the trusted reliability, exceptional ice clarity, and consistent performance that define Hoshizaki quality—supporting your business today and as it grows.
These models combine Hoshizaki’s proven legacy features with new innovations to deliver superior ice quality, reliability, and operational convenience.
MAIN FEATURES:
Sustainable & Efficient
Uses eco-friendly R290 refrigerant and a magnetic DC pump motor with variable speed to reduce energy and water consumption. High-grade foamed insulation and a stand-by function further enhance efficiency.
Durable & Hygienic Construction
Closed water circuit ensures maximum hygiene and food safety. Food-grade stainless steel (AISI 430) components and automated cleaning increase durability and reliability.
Advanced Technology
Smart variable-speed pump adjusts water flow during each phase of ice production, preventing chipped or cloudy cubes. The closed cell system forms individual, high-quality ice cubes.
Smart & Long-Lasting Design
Reduced wear and tear through intelligent motor control. Cleaning notifications, removable water tank and pump, and adjustable dimple control simplify maintenance and extend lifespan.
Compact & Space-Saving
Self-contained design delivers high output in a compact footprint, ideal for professional environments with limited space.
Plug & Play Installation
Easy to install and operate, featuring intuitive controls, stand-by and wash functions, and an optional scoop holder kit for added convenience.
SPECIFICATIONS:
- Exterior: Stainless Steel AISI 441, Galvanized Steel (Rear)
-
Ice Production Capacity (24 Hours):
- Approx. 165kg @ 10°C Air Temperature / 10°C Water Temperature
- Approx. 145kg @ 21°C Air Temperature / 15°C Water Temperature
- Approx. 140kg @ 32°C Air Temperature / 21°C Water Temperature
- Maximum Storage Capacity: Approx. 110kg (Bin Control Setting: Approx. 80kg)
- Width: 704mm
- Depth: 665mm
- Height: 1580mm
- Net Weight: 101kg
- Packed Weight: 114kg
- Cooling: Air
- Power Supply: 1 Phase, 220–240V, 50Hz, 10A Plug
- Amperage: Running: 3.8A, Rated Motor: 3.8A, Starting: 27A
- Refrigerant Charge: R290 / 147g
-
Operating Conditions:
- Ambient Temperature: 1°C to 40°C
- Water Supply Temperature: 5°C to 35°C
- Water Supply Pressure: 0.07–0.8MPa (0.7–8bar)
- Voltage Range: Rated Voltage ±6%
- Electric Consumption: 870W
-
Water Consumption per 24 Hours:
- Approx. 0.68m³ @ 10°C Air Temperature / 10°C Water Temperature
- Approx. 0.37m³ @ 21°C Air Temperature / 15°C Water Temperature
- Approx. 0.36m³ @ 32°C Air Temperature / 21°C Water Temperature
- Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 2580W
- Accessories Included: Installation Kit, Legs, Scoop
- Package Dimensions: 805mm × 760mm × 1684mm
- GEM Number: AIM0029
Warranty: 2 years parts and labour
