Hoshizaki 145KG Cube Ice Maker with Drain Pump - Self-Contained - IM-240PE-23-F

$10,286.00 EX GST

SKU: IM-240PE-23-F

BRAND: Hoshizaki

Cube Ice
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Estimate Delivery Cost:

Calculating finance...
Flexible terms from 1-5 years. No bonds, no deposits, and no hidden fees.
Learn more
PRODUCT INFORMATION
Delivery Information
Warranty & returns
REVIEWS
PRODUCT INFORMATION

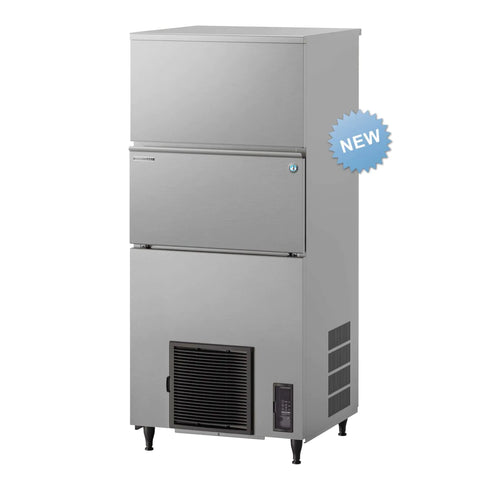

Hoshizaki 145KG Cube Ice Maker with Drain Pump - Self-Contained - IM-240PE-23-F

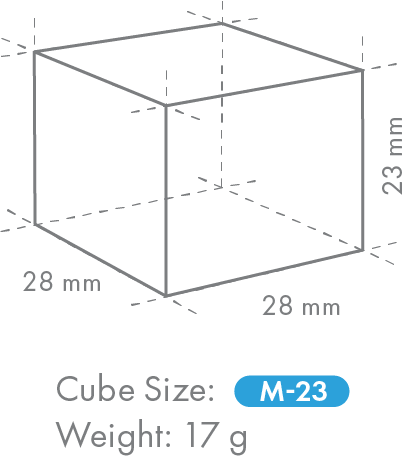

The Hoshizaki IM-240PE-F-23 is a FlexiCUBE self-contained cuber designed to produce up to 165kg of Hoshizaki’s world-renowned hard and slowly melting 28mm cubes every 24 hours.

Maximizing Space with Enhanced Flexibility

The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.

FlexiCUBE models retain all the benefits of the standard IM CUBE while adding features that make placement easier in tight or unconventional spaces. Many food service locations face height or drain limitations, which can restrict traditional ice makers. The FlexiCUBE includes an integrated drain pump, allowing flexible installation up to 10 meters from the drain and up to 1.5 meters in height. This enables project owners and designers to optimize kitchen or bar layouts without compromising performance.

These models combine Hoshizaki’s proven legacy features with new innovations to deliver superior ice quality, reliability, and operational convenience.

MAIN FEATURES:

Sustainable & Efficient

Designed with sustainability in mind, this model uses eco-friendly R290 natural refrigerant and a variable-speed magnetic DC pump motor to reduce both energy and water consumption. A stand-by function and high-performance foamed insulation further enhance overall efficiency.

Durable & Hygienic Construction

A closed water circuit and Closed Cell System protect against contamination while ensuring individually formed, high-quality ice cubes. Automated cleaning, food-grade stainless steel components (AISI 430), and an optional scoop holder kit support maximum hygiene and long-term durability.

Advanced Technology

Smart water-flow control automatically adjusts throughout the ice-making cycle to produce clear, consistent cubes. Built-in cleaning notifications for the water circuit and condenser, along with an adjustable dimple size control panel, provide added precision and control.

Smart & Long-Lasting Design

Premium internal components and advanced motor technology reduce wear and extend the unit’s lifespan. The easily removable water tank and DC pump simplify maintenance and servicing.

Compact & Space-Saving

An integrated drain pump allows flexible installation up to 10 meters horizontally and 1.5 meters vertically, making it ideal for locations where space or drain positioning is limited.

Plug & Play Installation

With a built-in drain pump and user-friendly control panel, installation and setup are straightforward, allowing the unit to be operational quickly and efficiently.

SPECIFICATIONS:

  • Exterior: Stainless Steel AISI 441, Galvanized Steel (Rear)
  • Ice Production Capacity (24 Hours):
    • Approx. 165kg @ 10°C Air Temperature / 10°C Water Temperature
    • Approx. 145kg @ 21°C Air Temperature / 15°C Water Temperature
    • Approx. 140kg @ 32°C Air Temperature / 21°C Water Temperature
  • Maximum Storage Capacity: Approx. 110kg (Bin Control Setting: Approx. 80kg)
  • Width: 704mm
  • Depth: 665mm
  • Height: 1580mm
  • Net Weight: 102kg
  • Packed Weight: 115kg
  • Cooling: Air
  • AC Supply Voltage: 1 Phase 220-240V 50Hz / 10 AMP Plug
  • Amperage: Running: 3.8A, Rated Motor: 3.8A, Starting: 27A
  • Refrigerant Charge: R290 / 147g
  • Operating Conditions:
    • Ambient Temperature: 1-40°C
    • Water Supply Temperature: 5-35°C
    • Water Supply Pressure: 0.07-0.8MPa (0.7–8bar)
    • Voltage Range: Rated Voltage ±6%
  • Electric Consumption: 870W
  • Water Consumption Per 24 Hours:
    • Approx. 0.68m³ @ 10°C Air Temperature / 10°C Water Temperature
    • Approx. 0.37m³ @ 21°C Air Temperature / 15°C Water Temperature
    • Approx. 0.36m³ @ 32°C Air Temperature / 21°C Water Temperature
  • Electrical Circuit Breaker Protection: 5A
  • Heat Rejection (AT 32°C, WT 21°C): 2580W
  • Accessories Included: Installation Kit, Legs, Scoop
  • Package Carton Dimensions: 805mm × 760mm × 1684mm
  • GEM Number: AIM0029

Specification Sheet

Warranty: 2 years parts and labour
