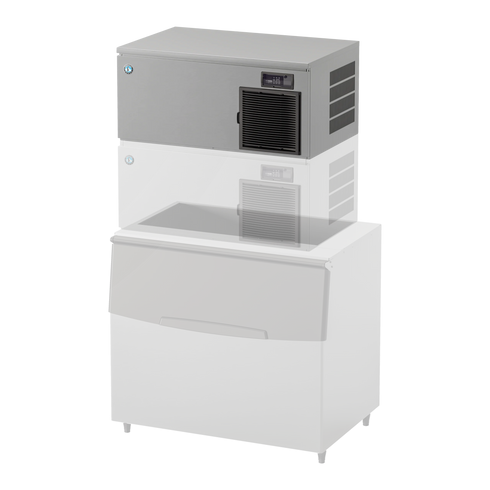

Hoshizaki 180KG Cube Ice Maker - Modular - IM-240DPE-28

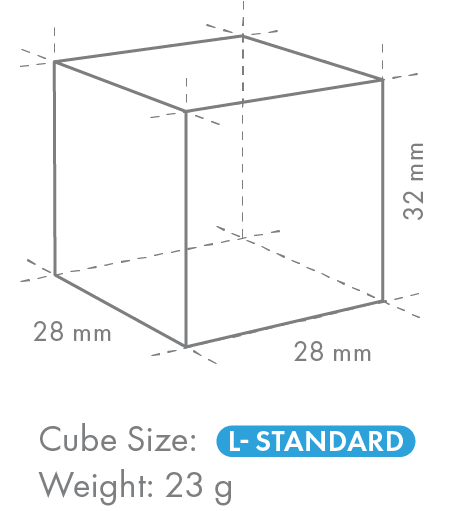

The Hoshizaki IM-240DPE is the new standard IM CUBE modular and stackable cuber from Hoshizaki, producing up to 180kg of Hoshizaki’s world-renowned hard and slowly melting 28mm cubes every 24 hours.

Set Yourself Up for Growth and Success

The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.

Alongside these enhancements, the IM CUBE series continues to deliver the trusted reliability, exceptional ice clarity, and consistent performance that define Hoshizaki quality—supporting your business today and as it grows.

These models combine Hoshizaki’s proven legacy features with new innovations to deliver superior ice quality, reliability, and operational convenience.

MAIN FEATURES:

Sustainable & Efficient

Variable-speed magnetic DC pump motor, R290 refrigerant, stand-by function, premium insulation, and an improved water tank design reduce energy and water consumption.

Durable & Hygienic Construction

Closed water circuit for maximum food safety, food-grade stainless steel (AISI 430) components for reduced wear, and an optional scoop holder kit for hygienic handling.

Advanced Technology

Smart pump control adjusts water flow during production to prevent chipped or cloudy cubes, while the closed cell system ensures clear, individual cube formation.

Smart, Long-Lasting Design

Automated cleaning with wash auto-restart and cleaning notifications help maintain performance and extend lifespan.

Compact & Space-Saving

Modular and stackable design maximises output while optimising kitchen space.

Plug & Play Installation

Simple controls, adjustable dimple size panel, and removable water tank and DC pump for easy operation and maintenance.

SPECIFICATIONS:

  • Exterior: Stainless Steel AISI 441, Galvanized Steel (Rear)
  • Ice Production Capacity (24 Hours):
    • Approx. 195kg @ 10°C Air Temperature / 10°C Water Temperature
    • Approx. 180kg @ 21°C Air Temperature / 15°C Water Temperature
    • Approx. 160kg @ 32°C Air Temperature / 21°C Water Temperature
  • Corresponding Bins & Top Kits: B-801SA (IMD) | B-1300 SS (No Top Kit)
  • Width: 1084mm
  • Depth: 700mm
  • Height: 500mm
  • Net Weight: 82kg
  • Packed Weight: 96kg
  • Cooling: Air
  • AC Supply Voltage: 1 Phase 220-240V 50Hz / 10 AMP Plug
  • Amperage: Running: 3.7A, Rated Motor: 3.7A, Starting: 27A
  • Refrigerant Charge: R290 / 147g
  • Operating Conditions:
    • Ambient Temperature: 1-40°C
    • Water Supply Temperature: 5-35°C
    • Water Supply Pressure: 0.07-0.8MPa (0.7–8bar)
    • Voltage Range: Rated Voltage ±6%
  • Electric Consumption: 845W
  • Water Consumption Per 24 Hours:
    • Approx. 0.67m³ @ 10°C Air Temperature / 10°C Water Temperature
    • Approx. 0.32m³ @ 21°C Air Temperature / 15°C Water Temperature
    • Approx. 0.29m³ @ 32°C Air Temperature / 21°C Water Temperature
  • Electrical Circuit Breaker Protection: 5A
  • Heat Rejection (AT 32°C, WT 21°C): 2250W
  • Accessories Included: Installation Kit, Scoop
  • Package Carton Dimensions: 1196mm × 825mm × 640mm
  • GEM Number: AIM0021

Specification Sheet

Warranty: 2 years parts and labour
