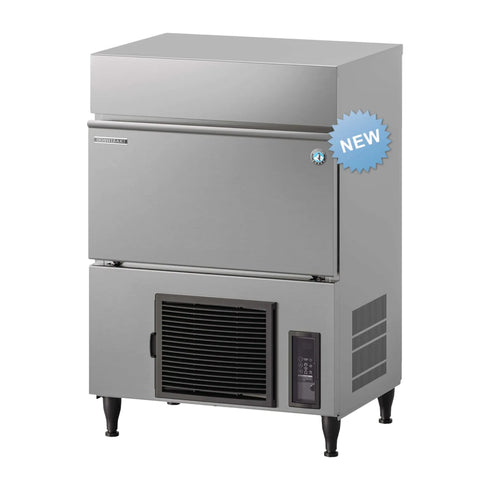

Hoshizaki 28KG Ball Ice Maker - Self Contained - IM-65PE-Q

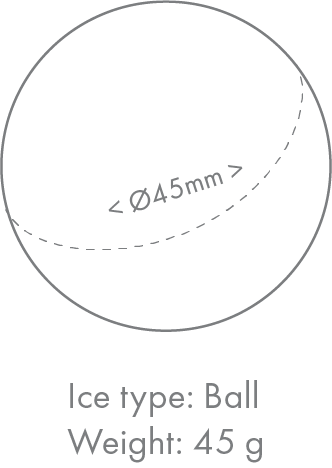

The Hoshizaki IM-65PE-Q sets a new benchmark in the IM range of Ball ice makers. This self-contained unit produces up to 33kg of Hoshizaki’s world-renowned hard and slowly melting 45mm ball ice cubes every 24 hours.
Set Yourself Up for Growth and Success
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Alongside these enhancements, the IM CUBE series continues to deliver the trusted reliability, exceptional ice clarity, and consistent performance that define Hoshizaki quality—supporting your business today and as it grows.
These models combine Hoshizaki’s proven legacy features with new innovations to deliver superior ice quality, reliability, and operational convenience.
MAIN FEATURES:
- Enhanced Hygiene & Food Safety
- Closed water circuit protects against contamination throughout the ice-making
- process
- Optional scoop holder kit for improved sanitary handling
- Improved Performance
- Variable-speed magnetic DC pump motor for greater efficiency
- Uses eco-friendly R290 refrigerant
- Superior Ice Quality
- Smart water flow adapts to each stage of production
- Prevents cloudy or chipped ice
- Individual cube formation with closed cell system
- Increased Durability
- Automated cleaning system reduces maintenance effort
- Food-grade stainless steel components (AISI 430) for long-lasting performance
- High-grade insulation for improved reliability
- Operator & Maintenance Convenience
- Cleaning notifications for water circuit and condenser
- Adjustable control panel for custom ice dimple size
- Removable water tank and pump for easy servicing
- Energy Efficiency
- Variable-speed DC pump motor reduces power consumption
- Standby function for added energy savings
- High-performance insulation improves thermal efficiency
- Natural R290 refrigerant
- Water Efficiency
- Optimised water tank design reduces water usage
- Smart pump operation minimises waste
SPECIFICATIONS:
- Exterior: Stainless Steel AISI 441, Galvanized Steel (Rear)
-
Ice Production Capacity (24 Hours):
- Approx. 33kg @ 10°C Air Temperature / 10°C Water Temperature
- Approx. 28kg @ 21°C Air Temperature / 15°C Water Temperature
- Approx. 23kg @ 32°C Air Temperature / 21°C Water Temperature
- Approx. 33kg @ 10°C Air Temperature / 10°C Water Temperature
- Max Storage Capacity: Approx. 17kg (Bin Control Setting Approx. 9kg)
- Width: 633mm
- Depth: 506mm
- Height: 950mm
- Net Weight: 52kg
- Packed Weight: 62kg
- Cooling: Air
- AC Supply Voltage: 1 Phase 220-240V 50Hz / 10 AMP Plug
- Amperage: Running: 2.1A, Rated Motor: 2.1A, Starting: 11A
- Refrigerant Charge: R290 / 110g
-
Operating Conditions:
-
Ambient Temperature: 1-40°C
-
Water Supply Temperature: 5-35°C
-
Water Supply Pressure: 0.07-0.8MPa (0.7–8bar)
- Voltage Range: Rated Voltage ±6%
-
Ambient Temperature: 1-40°C
- Electric Consumption: 310W
-
Water Consumption Per 24 Hours:
- Approx. 0.37m³ @ 10°C Air Temperature / 10°C Water Temperature
- Approx. 0.29m³ @ 21°C Air Temperature / 15°C Water Temperature
- Approx. 0.24m³ @ 32°C Air Temperature / 21°C Water Temperature
- Approx. 0.37m³ @ 10°C Air Temperature / 10°C Water Temperature
- Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 830W
- Accessories Included: Installation Kit, Legs, Scoop
- Package Carton Dimensions: 735mm × 570mm × 1012mm
- GEM Number: AIM0007
Warranty: 2 years parts and labour
