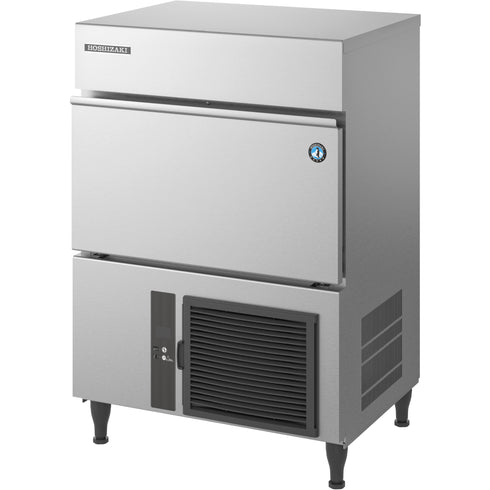

Hoshizaki Ball Ice Maker IM-65NE – Q

24KG BALL ICE MAKER

CHILL BEVERAGES WITH MINIMAL DILUTION

The Hoshizaki IM-65NE-Q is a self-contained under counter ice maker producing clean, pure and perfectly round Ball Ice. It is suitable for placement in bars. Produces up to 20kg per 24 hours and has a storage capacity of 17kg.

Industries used

Product Features

  • Ice Type: Ball
    Ice type ball
  • Easy maintenance, low water and energy consumption.
  • Each ice ball individually made by a jet spray.
  • Automatically drains and refills after each new batch, for fresh, hygienic ice.
  • Easily dismantled for cleaning.
  • Closed water circuit offers the ultimate contamination protection.
  • Hoshizaki ice makers are micro computer controlled, controlling the ice making process to perform at its best under varying circumstances, without having to make physical adjustments.
  • A stainless steel exterior provides a hygienic and high quality finish.
  • Foam injected polyurethane for insulation (JFC free), helps preserve the quality and consistency of the ice produced, reducing the number of production cycles.
  • An easily cleanable air filter allows end users to carry out a routine cleaning schedule, extending product life expectancy and reducing the frequency and costs of maintenance call-outs.

Production Capacity per 24hours
Approx. 26kg @10°C Air temp; 10°C Water
Approx. 24kg @21°C Air temp; 15°C Water
Approx. 20kg @32°C Air temp; 21°C Water

Max Storage Capacity
Approx. 17kg (Bin Control Setting Approx. 9 kg)

Freeze Cycle Time
Approx. 33 Min

Ice Production Per cycle
Approx. 0.67kg/15pcs

Dimensions
633mm (W) x 506mm (D) x 950mm (H)
(Includes 90-125mm Legs)

Cooling
Air

Weight Net/Gross (kg)
53 / 66

AC Supply Voltage
1 PHASE 220-240V 50Hz /10 AMP Plug

Amperage
Running: 2.9A Rated: 2.9A Starting: 17A

Refrigerant Charge
R134a / 200g

Operating Conditions
Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6%

Specification Sheet
Dimensional Drawing
Parts List
