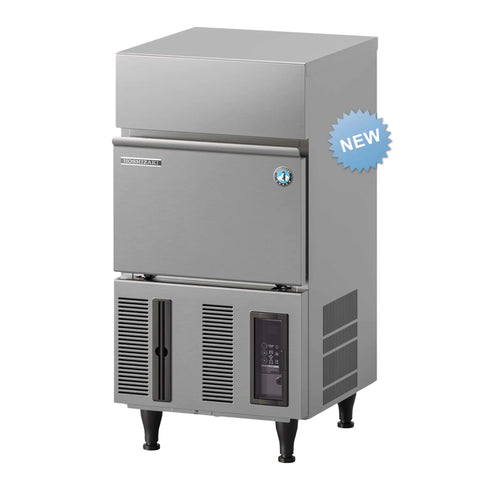

Hoshizaki Cube Series Self Contained Ice Machine 28kg Production IM-30CPE-28

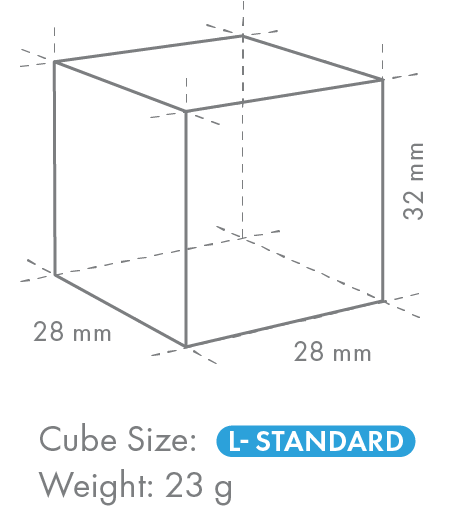

The Hoshizaki IM-30CPE sets a new benchmark in the IM CUBE series. This self-contained cuber produces up to 31kg of Hoshizaki’s world-renowned hard and slowly melting 28mm cubes every 24 hours.
Set Yourself Up for Growth and Success
The latest IM CUBE generation introduces a range of smart upgrades over the previous IM models. Enhancements include automated cleaning with wash auto-restart, water circuit and condenser cleaning notifications, high grade stainless steel components, a magnetic DC pump motor with variable speed, and dedicated stand-by and wash buttons.
Alongside these enhancements, the IM CUBE series continues to deliver the trusted reliability, exceptional ice clarity, and consistent performance that define Hoshizaki quality—supporting your business today and as it grows.
These models combine Hoshizaki’s proven legacy features with new innovations to deliver superior ice quality, reliability, and operational convenience.
MAIN FEATURES:
Sustainable & Efficient
Powered by an energy-efficient magnetic DC pump motor with variable speed, eco-friendly R290 natural refrigerant, and a stand-by function, the system reduces energy consumption while optimizing performance. Advanced foaming insulation and an improved water tank design further enhance energy and water savings.
Durable & Hygienic Construction
A closed water circuit and closed cell system ensure maximum hygiene and contamination protection. Food-grade stainless steel (AISI 430) components, reduced wear technology, and automated cleaning provide long-lasting durability and consistent food safety.
Advanced Technology
Smart water flow adjustment prevents chipped or cloudy ice, while the variable-speed DC pump motor ensures precision performance. Integrated cleaning alerts, condenser notifications, and an adjustable control panel enhance operational control and efficiency.
Smart & Long-Lasting Design
High-grade insulation, optimized motor control, and individual cube forming ensure consistent ice quality and extended component lifespan. Built-in maintenance reminders support reliable, long-term operation.
Compact & Space-Saving
Designed with an efficient internal layout, removable water tank and DC pump, and an optional Scoop Holder-Kit for organized storage—all without increasing footprint.
Plug & Play Installation
User-friendly controls, easy component access, and automated maintenance notifications allow for quick setup, simple operation, and hassle-free servicing.
SPECIFICATIONS:
- Depth: 451mm
- Height: 787mm
- Net Weight: 36kg
- Packed Weight: 41kg
- Cooling System: Air
- Power Supply: 1 Phase, 220–240V, 50Hz, 10A Plug
- Current: Running: 1.5A, Rated Motor: 1.5A, Starting: 8A
- Refrigerant: R290 / 65g
-
Operating Conditions:
- Ambient Temperature: 1°C to 40°C
- Water Supply Temperature: 5°C to 35°C
- Water Supply Pressure: 0.07–0.8MPa (0.7–8bar)
- Voltage Range: Rated Voltage ±6%
- Electric Consumption: 215W
-
Water Consumption (24 Hours):
- Approx. 0.15m³ @ 10°C air temperature / 10°C water temperature
- Approx. 0.07m³ @ 21°C air temperature / 15°C water temperature
- Approx. 0.05m³ @ 32°C air temperature / 21°C water temperature
- Electrical Circuit Breaker Protection: 5A
- Heat Rejection (AT 32°C, WT 21°C): 570W
- Accessories Included: Installation Kit, Legs, Scoop
- Package Dimensions: 505 × 575 × 862mm
- GEM Number: AIM0015
Warranty: 3 years Parts and Labour on the entire unit. 5 years (parts and labour) on evaporator. 5 years (parts only) compressor and air cooled condenser coil.
