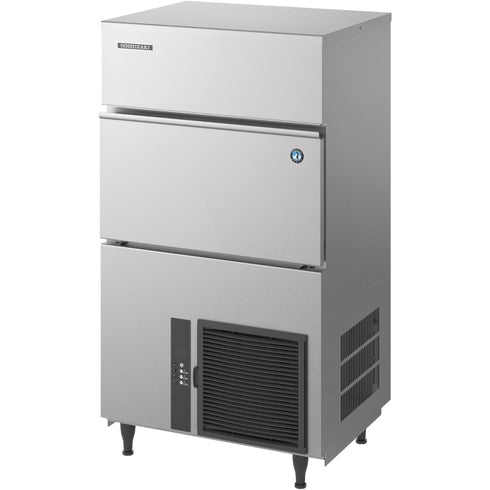

Hoshizaki Cube Series Self Contained Ice Machine 104kg Production IM-130NE-28
104KG CUBE ICE MAKER
HIGHEST QUALITY ICE
This self-contained cube ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavour of the drink.
Product Features
- Ice Type:
- New intelligent control circuit dedicated to saving power and water consumption.
- Micro computer controller controls ice making process to work at peak performance in any conditions.
- Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
- New 7 segment operational display panel for ease of use.
- Unique closed cell water circuit for ultimate contamination protection.
- Durable stainless steel exterior.
- Easily accessible and cleanable air filters reduce costly callouts.
- Exceptionally hard crystal clear cubes that melt slowly.
- Auto rinse and flush cycle.
- 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
For free 6 month extended warranty. Register online within 4 weeks of purchase date. Click here to register
Production Capacity per 24hours
Approx. 100kg @10°C Air temp; 10°C Water
Approx. 104kg @21°C Air temp; 15°C Water
Approx. 88kg @32°C Air temp; 21°C Water
Max Storage Capacity
Approx. 50kg (Bin Control Setting Approx.28kg)
Freeze Cycle Time
Approx. 22 Min
Ice Production Per cycle
Approx. 1.8kg/80pcs
Dimensions
704mm (W) x 506mm (D) x 1270mm (H)
(Include 70-110mm Legs)
Cooling
Air
Weight Net/Gross (kg)
76 / 85
AC Supply Voltage
1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage
Running: 4.5A Rated: 4.5A Starting: 19A
Refrigerant Charge
R404A / 380g
Operating Conditions
Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6%
Specification Sheet
Dimensional Drawing
Instruction Manual
Parts List
