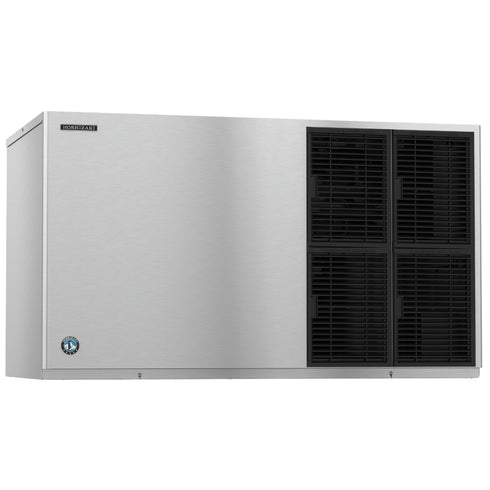

Hoshizaki Modular Crescent Ice Maker 590kg Production KM-590DJ-S

590KG CRESCENT ICE MAKER

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KM-590DJ-S ice machine produces up to 590kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs. The KM series efficient CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time. Ideal for fast selling establishments such as nightclubs, sporting and entertainment events.

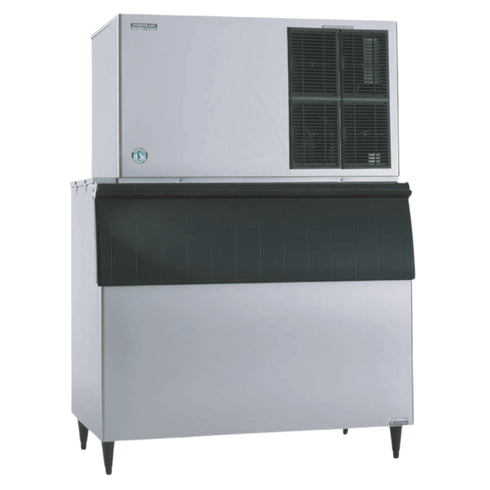

Disclaimer: Image shown displays the Hoshizaki KM-590DJ-S with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)

Industries used

Product Features

  • Ice Type:
    Ice type crescentIce type crescent
  • Individually shaped crescent ice.
  • Protected by HoshiGuard Antimicrobial Agent.
  • CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
  • EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
  • Durable stainless steel exterior.
  • Easily removable & cleanable air filters on front panel.
  • Ice storage bin, top kit and water filter sold separately.

Production Capacity per 24hours
Approx. 630kg @10°C Air temp; 10°C Water
Approx. 590kg @21°C Air temp; 15°C Water
Approx. 500kg @32°C Air temp; 21°C Water

Freeze Cycle Time
Approx. 28 Min

Ice Production Per cycle
Approx. 12.9kg/1,440pcs

Dimensions
1,219mm (W) x 695mm (D) x 695mm (H)

Cooling
Air

Weight Net/Gross (kg)
136/160

AC Supply Voltage
1 PHASE 220-240V 50Hz / 15amp Plug

Amperage
Running: 11.35A Starting 58A

Refrigerant Charge
R404A/1,900g

Operating Conditions
Ambient Temp. 7-38°C
Water Supply Temp. 7-32°C
Water Supply Pressure 0.07-0.78MPa (0.7-7.8bar)
Voltage Range 198-254V

Electrical Consumption
2,080W (AT. 32°C; WT 21°C)

Water Consumption
Approx. 1.15m3/d (AT. 21°C; WT 15°C)

Compatible Water Filter
HLF32 Twin Filter System (Sold separately)

Specification Sheet
Dimensional Drawing
