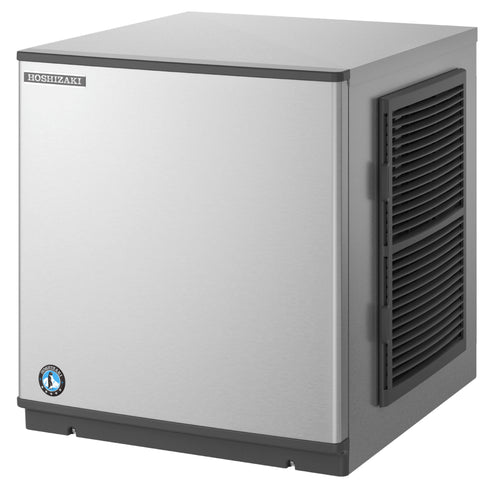

Hoshizaki Modular Crescent Ice Maker KMD-270AB



The Hoshizaki KMD-270AB ice machine produces up to 221kg of clear hard crescent ice a day.It includes a double-sided stainless steel evaporator, which requires fewer cycles to produce a full bin of ice, thereby reducing energy consumption. The CycleSaver® design allows our crescent ice makers to produce more ice, using less energy, while cycling 1/2 as many times as the competition.

Disclaimer: Image shown displays the KMD-270AB with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)

Industries used

Product Features

  • Ice Type:
    Ice type crescentIce type crescent
  • Individual premium crescent cube with no ice bridging.
  • Exceptionally hard crystal clear cubes that melt slowly.
  • Durable stainless steel exterior.
  • Slide in air filter for easy cleaning – maintaining performance efficiency.
  • Patented double sided stainless steel evaporator fro all water conditions – produces more ice in less cycles.
  • Audible alarms.
  • 3 year parts & labour on entire unit, 5 year parts & labour on the evaporator,5 year (parts only) on compressor and air cooled condenser coil.

Hoshizaki Warranty

For free 6 month extended warranty. Register online within 4 weeks of purchase date. Click here to register

Production Capacity per 24hours
Approx. 275kg @10°C Air temp; 10°C Water
Approx. 255kg @21°C Air temp; 15°C Water
Approx. 221kg @32°C Air temp; 21°C Water

Max Storage Capacity
Select Bin and Kit

Freeze Cycle Time
Approx. 26.8 Min

Ice Production Per cycle
Approx. 5.3kg / 572pcs

560mm (W) x 625mm (D) x 610mm (H)


Weight Net/Gross (kg)
57 / 73

AC Supply Voltage
1 PHASE 220-240V 50Hz / 10amp Plug

Running: 4.9A Starting: 24A

Refrigerant Charge
R404A / 780g

Operating Conditions
Ambient Temp.: 7-40°C
Water Supply Temp.: 7-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6%

Specification Sheet
Dimensional Drawing
Instruction Manual
