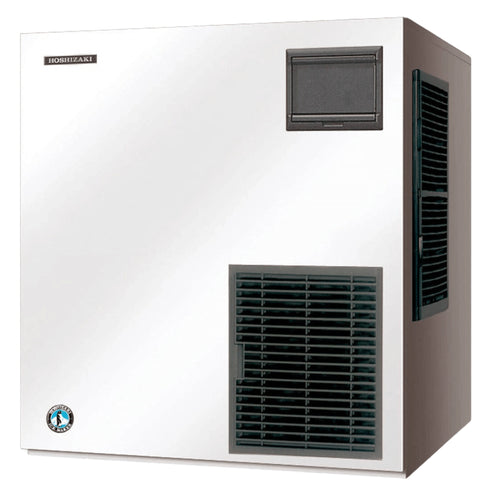

Hoshizaki Modular Flake Ice Machine 650kg Production FM-750AKE
650KG FLAKE ICE MAKER
PURE & COOL COMMERCIAL ICE MAKER
The FM-750AKE Series Commercial Ice machines produce up to 530kg of flaked ice a day which is often used for producing display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.

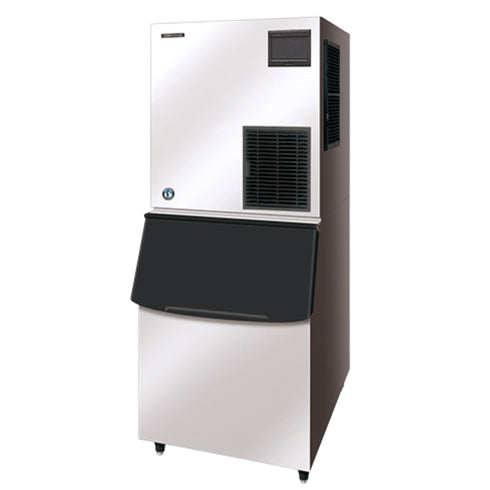

Disclaimer: Image shown displays the Hoshizaki FM-750AKE with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)
Product Features
- Ice Type: Flake
- “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
- Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
- Automatic flush function helps keep the ice making system clean.
- Controller board with Operational Status display assists in troubleshooting.
- Due to the auger system, water consumption is equal to ice production.
- Can be converted to Nugget ice by changing the extruding head and cutter (parts at an additional cost).
- 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air-cooled condenser coil.
For free 6 month extended warranty. Register online within 4 weeks of purchase date. Click here to register
Production Capacity per 24hours
Approx. 750kg @10°C Air temp; 10°C Water
Approx. 650kg @ 21°C Air temp; 15°C Water
Approx. 530kg @ 32°C Air temp; 21°C Water
Max Storage Capacity
Not Applicable
Dimensions
762mm (W) x 700mm (D) x 780mm (H)
Cooling
Air
Weight Net/Gross (kg)
133 / 143
AC Supply Voltage
1 PHASE 220-240V 50Hz/15AMP Plug
Amperage
Running: 9.2A Starting: 43A
Refrigerant Charge
R404A
Operating Conditions
Ambient Temp.: 5-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.05-0.8MPa (0.5-8bar)
Voltage Range: Rated Voltage ±10%
Specification Sheet
Dimensional Drawing
Installation Manual
Instruction Manual
Parts List
