Hoshizaki Modular Nugget Ice Maker 360kg Production FM-480AKE-N

$7,957.27 EX GST $10,975.00
$8,753.00 inc. GST

You Save: $3,017.73 (28%)

SKU: FM-480AKE-N

BRAND: Hoshizaki

Hurry! Only 0 Left in Stock!

Nugget Ice
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Estimate Delivery Cost:

PRODUCT INFORMATION
Delivery Information
Warranty & returns
REVIEWS
PRODUCT INFORMATION

Hoshizaki Modular Nugget Ice Maker 360kg Production FM-480AKE-N

360KG NUGGET ICE MAKER

PURE & COOL NUGGET ICE MAKER

This modular ice maker produces nugget ice, which is often used for producing display of fish, fresh food and bottled beverages. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.

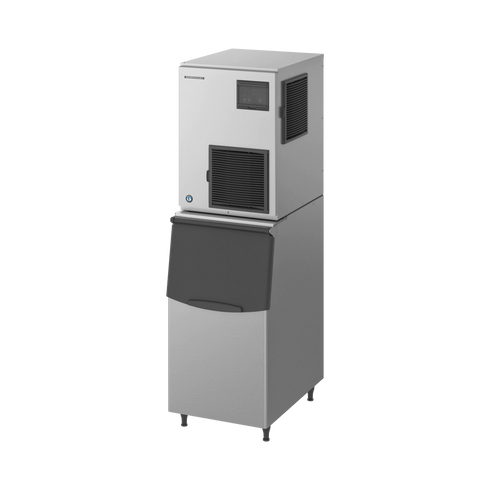

Disclaimer: Image shown displays the Hoshizaki FM-480AKE-N with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)

Industries used

Product Features

  • Ice Type: Nugget
    Ice type nugget
  • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
  • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
  • Automatic flush function, helps keep the ice making system clean.
  • Controller board with Operational Status display assists in trouble shooting.
  • Due to the auger system, water consumption is equal to ice production.
  • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.

Hoshizaki Warranty

For free 6 month extended warranty. Register online within 4 weeks of purchase date. Click here to register

Production Capacity per 24hours
Approx. 430kg @10°C Air temp; 10°C Water
Approx. 360kg @ 21°C Air temp; 15°C Water
Approx. 290kg @ 32°C Air temp; 21°C Water

Max Storage Capacity
Select Bin & Kit

Dimensions
560mm (W) x 700mm (D) x 780mm (H)

Cooling
Air

Weight Net/Gross (kg)
95 / 102

AC Supply Voltage
1 PHASE 230V 50Hz / 10 AMP Plug

Amperage
Running: 8.4A Starting: 43A

Refrigerant Charge
R404A

Operating Conditions
Ambient Temp.: 5-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±10%

Specification Sheet
Dimensional Drawing
Installation Manual
Instruction Manual
Parts List
