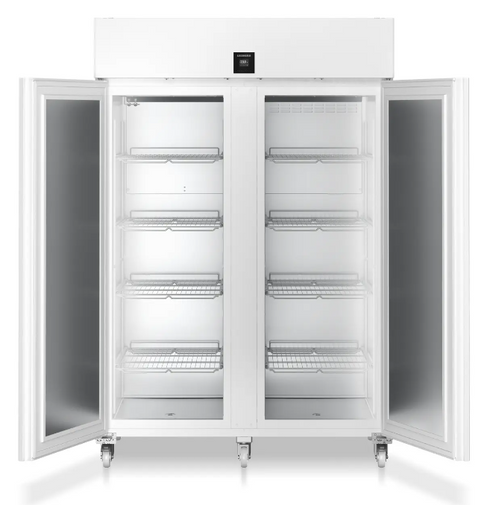

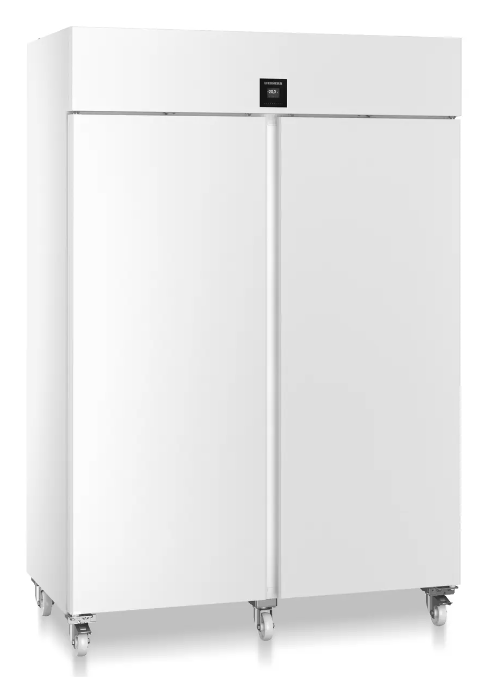

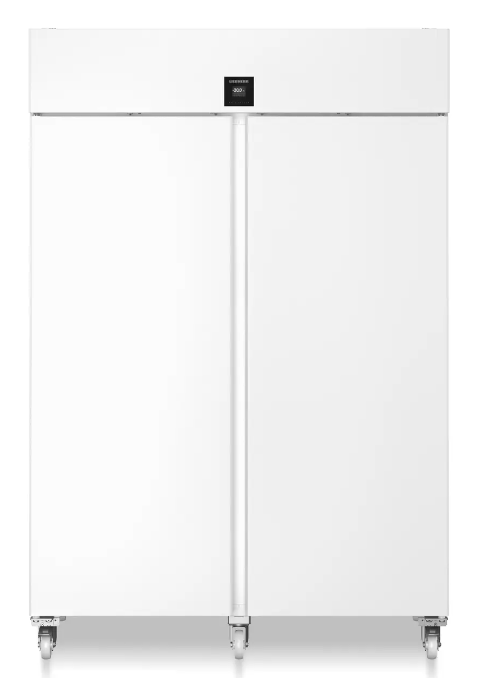

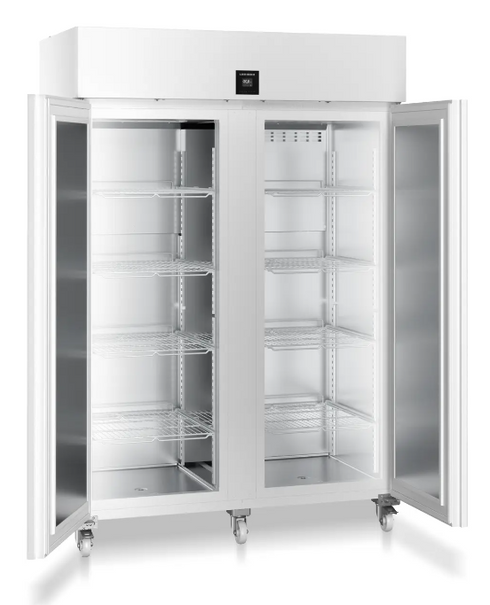

Liebherr Laboratory Freezer with Fan-Assisted Cooling - SFPvh 1402

The Liebherr SFPvh 1402 is an ultra-high-capacity freestanding laboratory freezer with convection cooling, purpose-built for the most demanding low-temperature storage requirements of large-scale laboratories, research institutions, pharmaceutical facilities, and regulated scientific environments where exceptional storage volume, precise temperature control, and comprehensive monitoring capability are absolutely non-negotiable. With a 1,391L gross capacity and an adjustable temperature range of -9°C to -35°C, it delivers extraordinary frozen storage volume with the precision, reliability, and compliance credentials that the most critical laboratory applications demand.

The forced-air convection cooling system with automatic defrosting ensures rapid, even temperature distribution throughout the entire interior, maintaining consistent conditions across all eight adjustable storage levels and eliminating warm spots that could compromise the integrity of sensitive materials. The 2.4" touch and swipe colour display provides intuitive, precise temperature management, while visual and audible alarms in case of malfunction and a power failure alarm triggered immediately upon power loss — sustained for at least 12 hours — ensure critical storage conditions are never compromised without immediate notification. The volt-free alarm contact and DIN 13277 compliance enable seamless integration with external building management and alarm systems for comprehensive facility-wide monitoring.

The chrome-nickel steel interior liner (1.4301 / AISI 304) delivers exceptional durability, hygiene, and resistance to the rigours of continuous laboratory use, while LED light columns on both sides of the interior ensure every shelf level is fully illuminated for easy product identification without the need to disturb stored materials. The electronic lock with remote control provides secure, convenient access management, while the 1 x Ø 12mm access port supports external sensor and monitoring connections. Built-in WiFi/LAN connectivity via SmartModule and an integrated USB data logger interface provide flexible, comprehensive options for continuous temperature documentation — essential for the detailed audit trails and compliance records required in ISO class 6 cleanroom and GMP class B regulated environments.

Five swivel castors — two with parking brakes — ensure the unit can be repositioned with ease while remaining securely in place during operation, and the choice of left-hand or right-hand door hinge provides maximum installation flexibility. Running on R290 natural refrigerant and backed by Liebherr's Perfection tier engineering and decades of expertise in premium laboratory freezer technology, the SFPvh 1402 represents the ultimate large-scale frozen storage solution for the highest-demand scientific and pharmaceutical environments.

MAIN FEATURES:

DIN 13277 compliant

Laboratory and pharmacy refrigerators from Liebherr meet all the necessary features and performance criteria to fully comply with DIN 13277. DIN 13277 defines the requirements and test specifications for refrigerators and freezers used in laboratories and for storing medicinal products.

Ultraefficient

Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilises the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series for example demonstrates how this has a positive effect on your overall operating costs.

NoFrost technology

With professional laboratory appliances from Liebherr, defrosting is no longer necessary. Any moisture that occurs is bound by the fan-assisted cooling, and needs-based defrosting phases drive even the last moisture particles out of the interior. For convenient, safe, and ice-free storage.

Designed for a service life of 15 years

Sustainable means the appliance is not only economical, but also durable. High-quality materials and solid workmanship, coupled with at least ten years of spare parts availability, make a Liebherr appliance a robust, reliable, and extremely long-lasting top performer in demanding everyday work.

Alarm relay

In the event of an alarm, the responsible control centre is informed immediately, usually through connection to the building control system. You can define in advance which alarms are to be forwarded, as well as set how long the forwarding remains active and whether a reminder should be sent after the alarm acknowledgement. This allows you to react immediately in critical situations.

15 years of spare parts availability

Liebherr-Hausgeräte GmbH is taking the service life of its high-quality appliances one step further for its customers: Spare parts availability will be extended to 15 years from the end of production of the respective model. This applies to all functional parts and storable parts of the equipment. Liebherr-Hausgeräte also guarantees this service retroactively for all appliances produced since 1 January 2021.

SPECIFICATIONS:

• Gross / Net Capacity: 1391 / – L

• Ext. Dimensions (W/D/H): 1427 / 867 / 2135 mm

• Int. Dimensions (W/D/H): 1210 / 638 / 1493 mm

• Energy Consumption in 365 Days: 1162 kWh ¹

• Ambient Temperature Range: +10°C to +35°C

• Heat Output: 1485 kJ/h

• Refrigerant: R 290

• Frequency / Voltage: 50/60 Hz / 220–240 V~

• Cooling System: Forced-air

• Defrosting: Automatic

• Temperature Range: -9°C to -35°C

• Gradient / Max. Fluctuation: 2.9°C ³ / 4.9°C ⁴

• Housing Material / Colour: Steel / White

• Door Material / Colour: Steel / White

• Liner Material: Chrome-nickel steel (1.4301 / AISI 304)

• Type of Control: 2.4" touch & swipe colour display

• Alarm in Case of Malfunction: Visual and audible

• Power Failure Alarm: Immediately upon power failure for at least 12 hrs

• Volt-free Alarm Contact: Yes

• Connectivity Type: SmartModule

• Interface: WiFi/LAN

• Data Logger: Integrated, USB interface

• Interior Light: LED light column both sides

• Adjustable Shelving: 8

• Shelf Material: Wire shelves, plastic-coated

• Usable Shelf Area (W/D): 480 / 638 mm

• Shelf Loading: 60 kg

• Maximum Total Load: 520 kg

• Castors: 5 swivel castors, 2 with parking brake

• Handle: Vertical recessed handle

• Access Ports: 1 x Ø 12 mm

• DIN 13277: Yes

• Type of Lock: Electronic, with remote control

• Door Hinges: Left-hand / right-hand

• Gross / Net Weight: 235 / 214.1 kg

• EAN-Nr.: 9005382249772

• Cleanroom Class (ISO EN 14664-1): ISO class 6

• GMP Cleanroom Class: GMP class B

Specification Sheet
