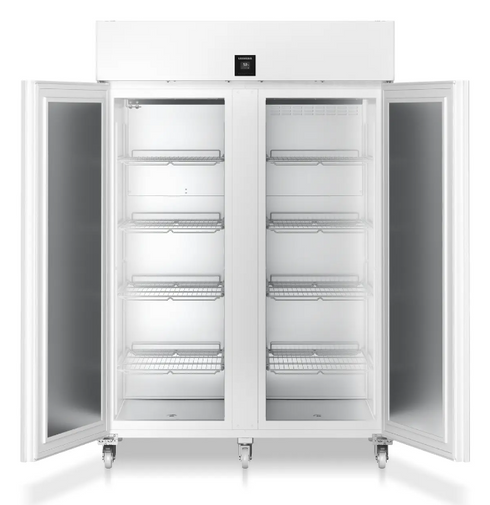

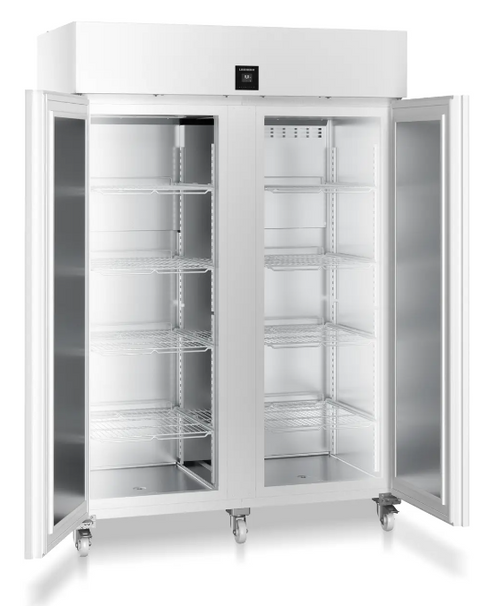

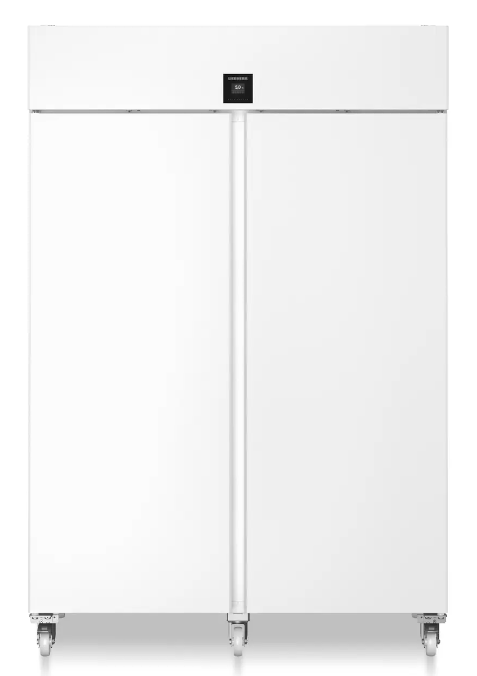

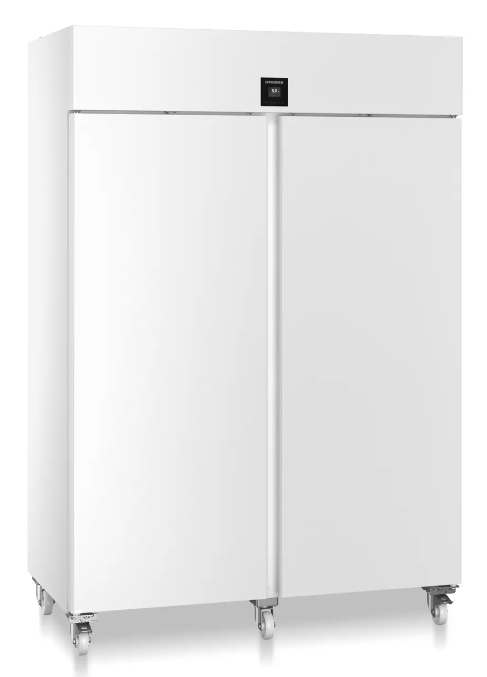

Liebherr Laboratory Refrigerator with Fan-Assisted Cooling - SRPvh 1402

The Liebherr SRPvh 1402 Perfection is a large-capacity, double-door laboratory refrigerator with convection cooling, engineered for demanding pharmaceutical, healthcare, and cleanroom environments. With a gross capacity of 1,391 liters and generous interior dimensions (1210/638/1493 mm), it offers substantial storage across eight adjustable, plastic-coated wire shelves rated for 60 kg each, with a maximum total load of 520 kg. The steel housing and door are finished in white, while the interior liner is built from chrome-nickel steel (1.4301 / AISI 304) for superior corrosion resistance and hygienic performance. The appliance is DIN 13277-compliant, and it's rated to ISO Class 6 cleanroom standards and GMP Class B, making it suitable for the most rigorous laboratory and pharmaceutical storage requirements. Forced-air cooling and automatic defrosting maintain a temperature range of -2 °C to +16 °C, with a tight gradient of 2.3 °C and max fluctuation of 2.1 °C, remaining stable across ambient temperatures of +10 °C to +35 °C.

Safety and monitoring are central to this unit's design. A 2.4" touch-and-swipe color display provides intuitive control, backed by visual and audible alarms that activate immediately in the event of a malfunction. A dedicated power failure alarm triggers instantly and remains active for at least 12 hours during an outage, and a volt-free alarm contact enables integration with external monitoring systems. The unit features SmartModule connectivity with WiFi/LAN interface for remote monitoring, plus an integrated data logger with USB interface for reliable, traceable documentation of temperature history.

Practical, security-focused features complete the design: an LED light column on both sides ensures full visibility of contents, while an electronic lock with remote control provides secure, convenient access management — a notable upgrade over standard mechanical locking. The unit rolls on five swivel castors, two with parking brakes, for easy repositioning, and its reversible door hinges (left-hand or right-hand) allow flexible installation to suit any lab layout. A vertical recessed handle and a 12 mm access port for cable or probe pass-through round out the functional design. At 225 kg gross weight and drawing just 464 kWh annually, the SRPvh 1402 Perfection delivers spacious, secure, and precisely controlled storage built for the highest standards of laboratory and pharmaceutical compliance.

MAIN FEATURES:

DIN 13277 compliant

Laboratory and pharmacy refrigerators from Liebherr meet all the necessary features and performance criteria to fully comply with DIN 13277. DIN 13277 defines the requirements and test specifications for refrigerators and freezers used in laboratories and for storing medicinal products.

±2 °C temperature stability

Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr appliances have an impressive maximum deviation of just ±2 °C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.

Ultraefficient

Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilises the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series for example demonstrates how this has a positive effect on your overall operating costs.

Designed for a service life of 15 years

Sustainable means the appliance is not only economical, but also durable. High-quality materials and solid workmanship, coupled with at least ten years of spare parts availability, make a Liebherr appliance a robust, reliable, and extremely long-lasting top performer in demanding everyday work.

Alarm relay

In the event of an alarm, the responsible control centre is informed immediately, usually through connection to the building control system. You can define in advance which alarms are to be forwarded, as well as set how long the forwarding remains active and whether a reminder should be sent after the alarm acknowledgement. This allows you to react immediately in critical situations.

15 years of spare parts availability

Liebherr-Hausgeräte GmbH is taking the service life of its high-quality appliances one step further for its customers: Spare parts availability will be extended to 15 years from the end of production of the respective model. This applies to all functional parts and storable parts of the equipment. Liebherr-Hausgeräte also guarantees this service retroactively for all appliances produced since 1 January 2021.

SPECIFICATIONS:
