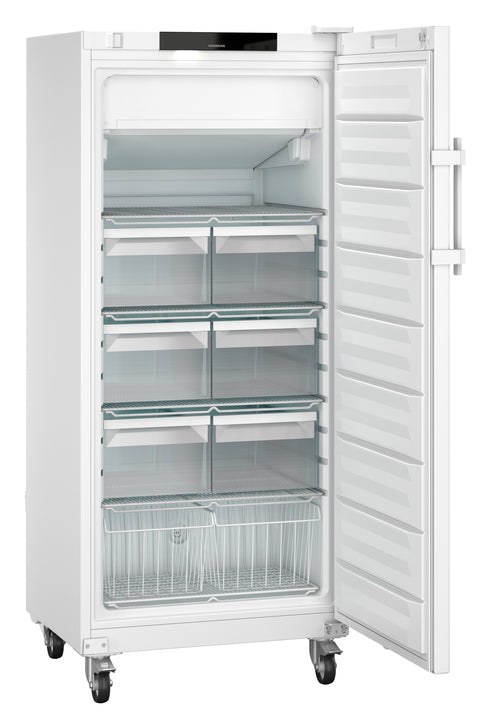

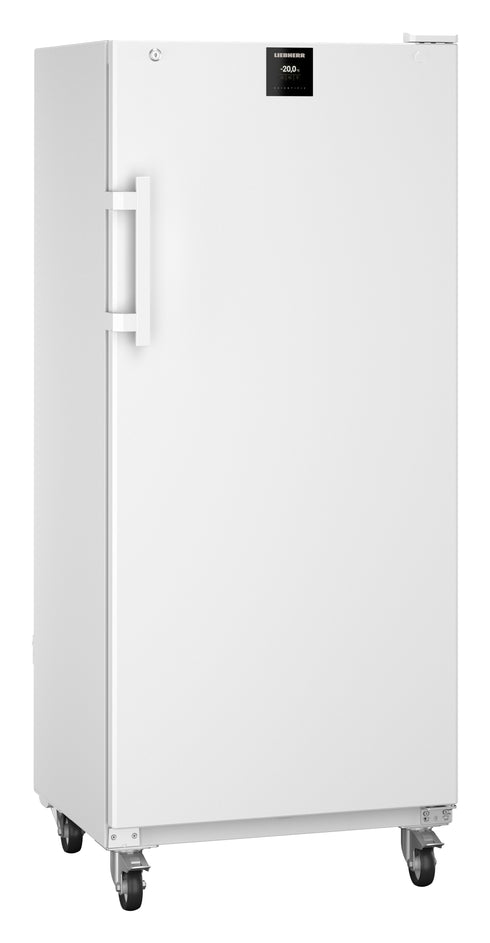

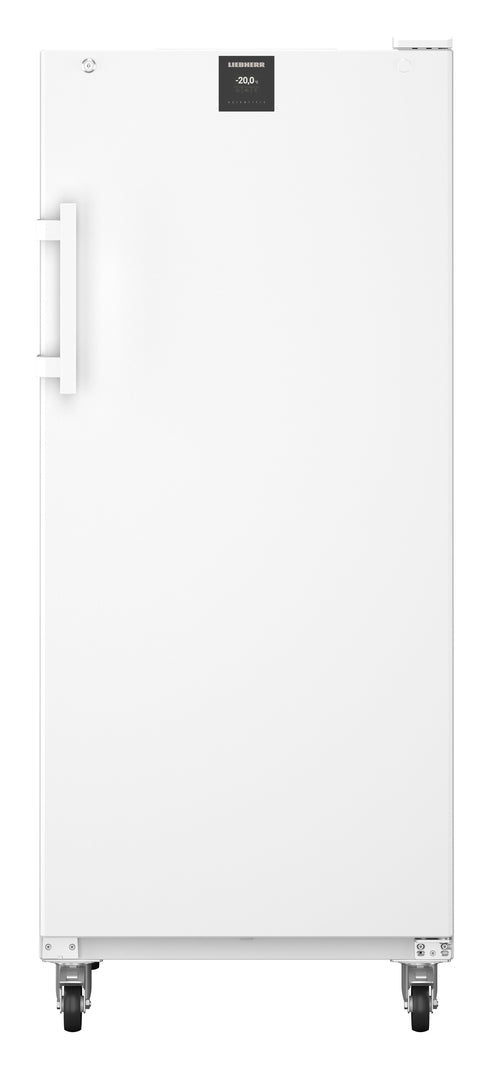

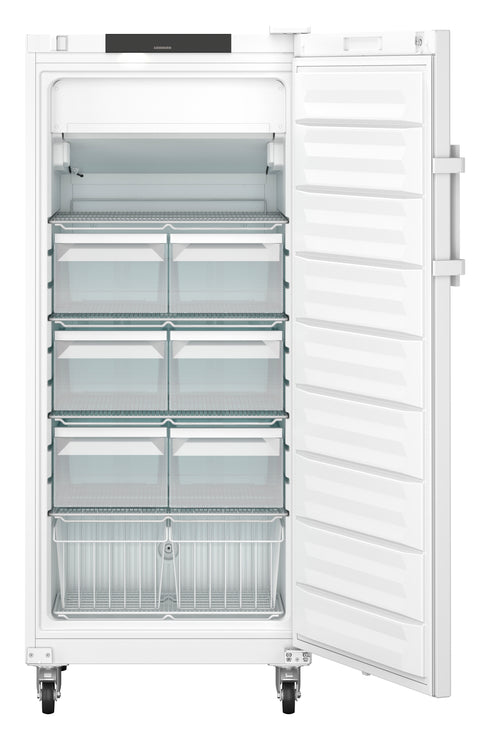

Liebherr Laboratory Freezer 472 litre Freezer SFFvh 5501

The Liebherr SFFvh 5501 is a high-capacity freestanding laboratory freezer with convection cooling, purpose-built for the precise low-temperature storage demands of laboratories, research facilities, pharmaceutical environments, and scientific institutions where consistent, reliable freezing performance and comprehensive monitoring capability are absolutely non-negotiable. With a 257L net capacity and an adjustable temperature range of -9°C to -35°C, it delivers exceptional frozen storage volume with the precision and reliability that sensitive samples, specimens, vaccines, and laboratory materials demand.

The forced-air convection cooling system with automatic defrosting ensures rapid, even temperature distribution throughout the entire interior, maintaining consistent conditions across all storage levels and eliminating warm spots that could compromise the integrity of sensitive materials. The 2.4" touch and swipe colour display provides intuitive, precise temperature management, while visual and audible alarms in case of malfunction and a power failure alarm triggered immediately upon power loss — sustained for at least 12 hours — ensure critical storage conditions are never compromised without immediate notification. The volt-free alarm contact enables seamless integration with external building management or alarm systems for comprehensive facility-wide monitoring.

Built-in WLAN/LAN connectivity and a USB data logger interface provide flexible options for continuous temperature documentation and monitoring, supporting the detailed audit trails and compliance records essential for regulated laboratory and pharmaceutical environments. The antimicrobial handle with opening mechanism minimises contamination risk during frequent access, while the mechanical lock and 1 x Ø 10mm access port support the monitoring and security requirements of regulated laboratory setups. Four adjustable plastic-coated wire shelves with a 60kg individual load capacity, six drawers, two baskets, and a 300kg maximum total load provide exceptional storage flexibility to suit a wide range of laboratory workflows.

Running on R290 natural refrigerant, the SFFvh 5501 is built with a commitment to both environmental responsibility and outstanding performance, backed by Liebherr's Perfection tier engineering and decades of expertise in premium laboratory freezer technology. Castors with front brakes and fixed rear castors ensure the unit can be repositioned with ease while remaining securely in place during operation, and the reversible door hinge provides maximum installation flexibility across a wide range of laboratory environments.

MAIN FEATURES:

DIN 13277 compliant

Laboratory and pharmacy refrigerators from Liebherr meet all the necessary features and performance criteria to fully comply with DIN 13277. DIN 13277 defines the requirements and test specifications for refrigerators and freezers used in laboratories and for storing medicinal products.

Ultraefficient

Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilises the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series for example demonstrates how this has a positive effect on your overall operating costs.

NoFrost technology

With professional laboratory appliances from Liebherr, defrosting is no longer necessary. Any moisture that occurs is bound by the fan-assisted cooling, and needs-based defrosting phases drive even the last moisture particles out of the interior. For convenient, safe, and ice-free storage.

Integrated Wi-Fi/LAN interface

The integrated WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or integrate these into existing local systems.

Mechanical lock

All professional Liebherr appliances are equipped with a mechanical lock with two keys for the storage of temperature-sensitive products. This way you can be sure that no unauthorised hands can access your stored goods.

Designed for a service life of 15 years

Sustainable means the appliance is not only economical, but also durable. High-quality materials and solid workmanship, coupled with at least ten years of spare parts availability, make a Liebherr appliance a robust, reliable, and extremely long-lasting top performer in demanding everyday work.

SPECIFICATIONS:

• Gross / Net Capacity: 472 / 257 L

• Ext. Dimensions (W/D/H): 747 / 769 / 1793 mm

• Int. Dimensions (W/D/H): 603 / 510 / 1118 mm

• Energy Consumption in 365 Days: 540 kWh

• Ambient Temperature Range: +10°C to +35°C

• Heat Output: 725 kJ/h

• Refrigerant: R 290

• Frequency / Voltage: 50 Hz / 220–240 V~

• Cooling System: Forced-air

• Defrosting: Automatic

• Temperature Range: -9°C to -35°C

• Gradient / Max. Fluctuation: 5.5°C / 4.4°C

• Housing Material / Colour: Steel / White

• Door Material: Steel

• Liner Material: Commercial grade moulded polystyrol

• Type of Control: 2.4" touch & swipe colour display

• Alarm in Case of Malfunction: Visual and audible

• Power Failure Alarm: Immediately upon power failure for at least 12 hrs

• Volt-free Alarm Contact: Yes

• Interface: WLAN/LAN

• Data Logger: USB interface

• Interior Light: LED

• Adjustable Shelving: 4

• Shelf Material: Wire shelves, plastic-coated

• Usable Shelf Area (W/D): 600 / 510 mm

• Shelf Loading: 60 kg

• Maximum Total Load: 300 kg

• Drawers: 6

• Number of Baskets: 2

• Castors: Castors with brake at the front, fixed castors at the rear

• Handle: Antimicrobial handle with opening mechanism

• Access Ports: 1 x Ø 10 mm

• Type of Lock: Mechanical

• Door Hinges: Right, reversible on site

• Gross / Net Weight: 113 / 104 kg

• EAN-Nr.: 9005382246511
