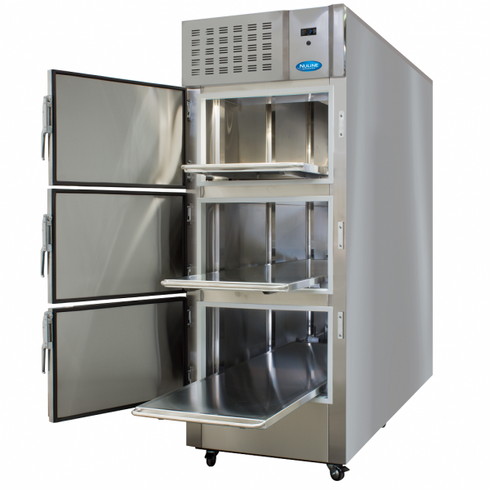

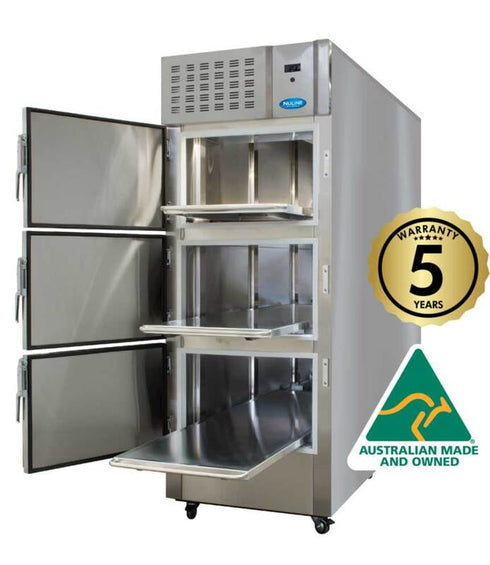

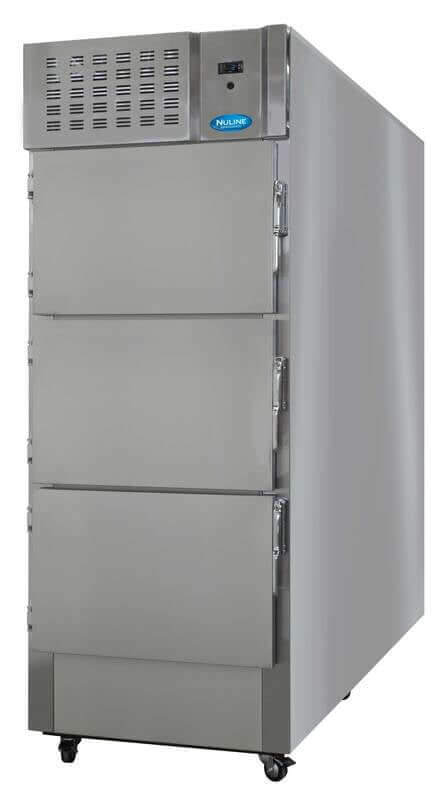

The NMR3 mortuary fridge is designed for storing three bodies. In order to use the mortuary fridge, it is necessary to have a compatible mortuary lifter to load and unload cadavers.
MAIN FEATURES:
- Easy-glide out stainless steel stretchers that glide on polypropylene rollers
- Large control panel with built in alarms – Audio & visual with reactivation alarm & mute function for alarm
- Minimum and maximum temperature recall function
- Interior lighting
- Top mounted refrigeration system that requires no installation
- Fan forced refrigeration system with auto defrost & water disposal
- R134a refrigerant
- Waste plumbing fitting for connection to a drain.
- Stainless steel interior and exterior
- Cabinet temperature of 2 to 4 degrees Celsius
- Ambient temperature range of 10 to 32 degrees Celsius
- Australian made in Victoria
- Availability: Made to order. The typical waiting time for the mortuary fridge is 2 to 4 weeks.
DIMENSIONS:
External Dimensions
- Width: 910 mm
- Depth: 2500 mm
- Height: 2325 mm
Compartment Dimensions
- Width: 660 mm
- Depth: 2130 mm
- Height: 365 mm
Packed Dimensions
- Width: 1035 mm
- Depth: 2650 mm
- Height: 2400 mm
Crated Dimensions
- Width: 1110 mm
- Depth: 2770 mm
- Height: 2600 mm
OPTIONS:
- Door lock
- Interior light and switch
- Voltage free connection (allows connection to a Building Monitoring System)
- Auto dialler with battery backup
- Bariatric sizing
- Battery operated lifter
NOTES:
- No installation is required for the mortuary fridge, however, floor drainage would be required if you are going to hose the cabinet out.
- Price excludes connection of floor drain and connection to a Building Monitoring System
SPECIFICATIONS:
General
-
Product Type: Refrigerator
-
Cabinet Style: Mortuary
-
Certification: TGA
-
Climate Rating: Climate Class SN (+10°C to +32°C)
- Warranty (years): 5
Doors
-
Number of Doors: 3
-
Door Material: Solid
-
Door Lock: ✔
-
Door Hinge: Right-hand side by special order; Left-hand side
- Reversible Door: No
Dimensions
-
Width / Depth / Height (mm): 910 / 2500 / 2325
- Gross / Net Weight (kg): 515 / 425
Construction
-
Interior Material: Stainless steel
-
Castors:
✔
-
Spark Free Interior:
No
- Lighting: ✔
Controller Functions
-
Controller Type: Digital controller
-
Temperature Alarm:
✔
-
Door Open Alarm: Optional extra
-
Power Failure Alarm:
No
-
Battery Back-up for Controller:
Optional extra
-
Volt-free Contact for Alarm Forwarding:
Optional extra
-
RS485 Port for BMS Connectivity:
No
-
Includes Data Logger:
No
- Access Port for External Temp Probe: Optional extra
Refrigeration
-
Climate Rating: Climate Class SN (+10°C to +32°C)
-
Cooling Type: Forced Air
-
Defrost Type: Automatic
- Refrigerant: R 134a
Power
- Power Connection: 10A plug & lead
