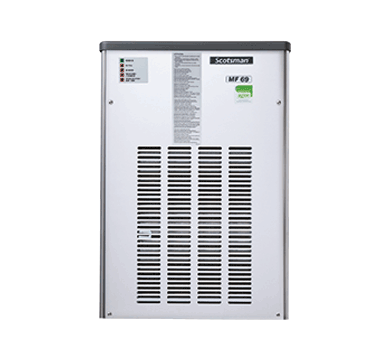

Scotsman 1400kg Modular Flake Ice Maker - MF 69 Split CO2 OX
The Scotsman MF 69 Split CO2 OX is Scotsman's ultimate high-volume, environmentally advanced modular flake ice maker, engineered for the most demanding large-scale commercial and industrial ice applications. Delivering an extraordinary 1,400kg of flake ice per day, this head-only split unit sets the benchmark for output capacity in the flake ice category — ideal for large food processing facilities, major hospitality operations, healthcare complexes, seafood processing, and any application where maximising ice production while minimising environmental impact is paramount.
As an EcoX model, the MF 69 Split CO2 OX operates on R744 carbon dioxide refrigerant — one of the most environmentally responsible refrigerant options available, with a global warming potential of just 1. This makes it an exceptional choice for sustainability-focused operators seeking to future-proof their operations. Supplied as an evaporator-only split unit, it requires connection to a remote condensing unit, providing maximum installation flexibility for sites where heat load management, noise reduction, or spatial constraints are a priority.
Flake ice is produced with a residual water content of 15%, delivering the pliable, product-conforming qualities essential for food display, seafood preservation, produce chilling, and healthcare applications. Agion antimicrobial technology actively resists microbial growth and odour development for consistently pure, hygienic ice output, while the XSafe Natural Sanitation System provides an additional layer of food safety assurance across every production cycle.
A stainless steel auger and freezing cylinder (evaporator) deliver long-term durability and hygienic performance under sustained high-volume use. A hermetic compressor and double protection system — incorporating an electronic rotation sensor and drive coupling — ensure reliable, uninterrupted operation, complemented by a low-water sensor for added machine safeguarding.
Simple, reliable electromechanical controls keep daily operation intuitive, and external indicator lights give clear at-a-glance visibility of operational status and upcoming maintenance needs. Finished in stainless steel with a PS plastic top cover and removable panels, the unit is built to endure in demanding commercial and industrial environments. Standard inclusions are a removable air filter, water hose, and drain hose.
Dimensions: W: 538mm D: 663mm H: 794mm
Packed Weight: 112kg
MAIN FEATURES:
Head only Ice maker
1400kg daily production rate
Residual water content 15%
Air cooled version
Split unit supplied with evaporator only - requires to be connected to remote condensing unit
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX carbon dioxide R744 refrigerant gas
XSafe - Natural Sanitation System
Stainless steel auger and freezing cylinder (evaporator)
Hermetic compressor
Double protection - electronic rotation sensor & drive coupling
Low-water sensor protection
Simple, reliable electromechanic control
Stainless steel finish, top cover in PS plastic with removable panels
External indicator lights to show operation status and maintenance
Requires storage bin model NB 948, CBT 48 FMCD (required cover when used with NB 948), UBH 1100, UBH 1600.
Includes removable air filter, water & drain hose
Warranty: 3 Years Parts and Labour
