Scotsman 192kg Modular Dice Ice Maker - NWH 507 AS OX

$5,595.21 EX GST

SKU: NWH 507 AS OX

BRAND: Scotsman

Half Dice Cube
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Estimate Delivery Cost:

PRODUCT INFORMATION
Delivery Information
Warranty & returns
REVIEWS
PRODUCT INFORMATION

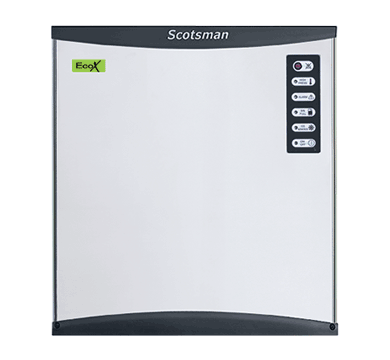

Scotsman 192kg Modular Dice Ice Maker - NWH 507 AS OX

The Scotsman NWH 507 AS OX is a high-capacity modular dice ice maker built for large-scale commercial operations that require a substantial and uninterrupted supply of quality ice every day. Producing 192kg of pure, clear dice ice cubes per 24 hours, it is an ideal solution for high-volume restaurants, hotels, bars, clubs, and busy hospitality venues where reliability and output are non-negotiable.

As a head-only unit, the NWH 507 is designed to pair with a compatible ice storage bin — compatible models include the NB 193, NB 393, or NB 530 (the CBT 30 52 AMCD cover is required when used with the NB 393 or NB 530) — giving operators the flexibility to configure their ice station to match their specific storage and operational requirements.

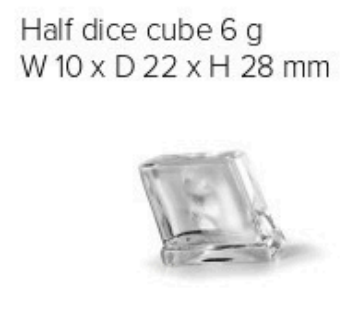

Each dice ice cube measures 10mm x 22mm x 28mm and weighs 6g — perfectly sized for rapid, consistent drink cooling across a wide range of beverage and food service applications. Scotsman's Agion Technology actively resists microbe growth and odour development, ensuring every cube produced is pure, clear, and transparent. The XSafe Natural Sanitation System adds a further built-in layer of hygiene protection, making the NWH 507 one of the most hygienic modular ice makers available for commercial use.

The top air discharge system makes the NWH 507 particularly well-suited to narrow space installations where front or rear ventilation clearance is restricted. Front evaporator access allows straightforward servicing without repositioning the unit, while the one-touch cleaning button keeps routine maintenance quick and effortless.

Running on EcoX Hydrocarbon R290 refrigerant gas — an eco-friendly option with a very low global warming potential — the NWH 507 delivers efficient, reliable performance with minimal environmental impact. The vertical evaporator spray-system technology ensures consistent ice quality cycle after cycle, and auto-alert indicator lights provide clear operational status and maintenance notifications at a glance. The T304 grade stainless steel exterior is built to withstand the demands of the most active commercial environments.

Dimensions: W: 560mm D: 610mm H: 622mm

Packed Weight: 77kg

MAIN FEATURES:

Head only Ice maker

192kg daily production rate

W 10mm x D 22mm x H 28mm, 6g ice cubes

Air cooled version

Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes

EcoX hydrocarbons R290 refrigerant gas

XSafe - Natural Sanitation System

Vertical evaporator spray-system technology

Top air discharge - suitable for narrown space installation

Front evaporator access for easy servicing

One touch button for easy cleaning

T304 grade stainless steel exterior

Auto-alert indicator lights to show operation status and maintenance

Requires storage bin model NB 193, NB 393 with CBT 30 52 AMCD cover (required cover when used with NB 393), NB 530 with CBT 30 52 AMCD cover

Includes removable air filter, water & drain hose

Specification Sheet

Brochure

Warranty: 3 Years Parts and Labour
