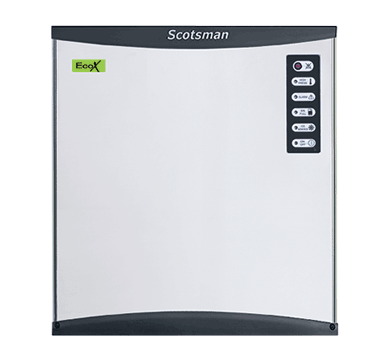

Scotsman 194kg Modular Dice Ice Maker - NWL 507 AS OX
The Scotsman NWL 507 AS OX is a high-capacity modular Large Dice ice maker built for commercial operations that demand a generous, uninterrupted supply of quality ice every day. Producing 194kg of pure, clear Large Dice ice cubes per 24 hours, it is an ideal head-only unit for high-volume restaurants, hotels, bars, clubs, and busy hospitality environments where both ice output and cube size matter.
As a head-only unit, the NWL 507 is designed to pair with a compatible ice storage bin — the NB 193, NB 393, or NB 530 (the CBT 30 52 AMCD cover is required when used with the NB 393 or NB 530) — giving operators the flexibility to configure the right storage capacity for their specific operational needs.
Each Large Dice ice cube measures 10mm x 22mm x 28mm and weighs 6g — a harder, slower-melting cube format that is ideal for premium drink presentation, spirits service, and venues where ice quality and longevity in the glass are important. Scotsman's Agion Technology actively resists microbe growth and odour development, ensuring every cube produced is pure, clear, and transparent. The XSafe Natural Sanitation System adds a further built-in layer of hygiene protection, making this one of the most hygienic modular ice makers available.
The top air discharge system makes the NWL 507 particularly well-suited to narrow space installations where front or rear clearance is restricted. Front evaporator access allows straightforward servicing without moving the unit, while the one-touch cleaning button keeps routine maintenance quick and effortless.
Running on EcoX Hydrocarbon R290 refrigerant gas — an eco-friendly refrigerant with a very low global warming potential — the NWL 507 delivers reliable, efficient performance with minimal environmental impact. The vertical evaporator spray-system technology ensures consistent ice quality cycle after cycle, and auto-alert indicator lights provide clear operational status and maintenance notifications. The T304 grade stainless steel exterior is built to handle the demands of the busiest commercial environments.
Dimensions: W: 560mm D: 610mm H: 622mm
Packed Weight: 77kg
MAIN FEATURES:
Head only Ice maker
194kg daily production rate
W 10mm x D 22mm x H 28mm, 6g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Top air discharge - suitable for narrown space installation
Front evaporator access for easy servicing
One touch button for easy cleaning
T304 grade stainless steel exterior
Auto-alert indicator lights to show operation status and maintenance
Requires storage bin model NB 193, NB 393 with CBT 30 52 AMCD cover (required cover when used with NB 393), NB 530 with CBT 30 52 AMCD cover
Includes removable air filter, water & drain hose
Warranty: 3 Years Parts and Labour
