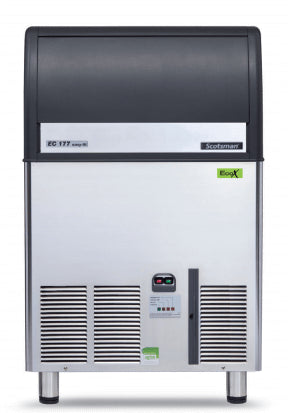

Scotsman Self Contained Ice Machine with Drain Pump 83kg Production - ECM 177 AS OX
Product Features:
- Up to 83kg daily production rate
- 48kg storage bin capacity
- Air cooled version
- Produces individual transparent Gourmet crystal clear
- supercubes
- Hydrocarbons R290 refrigerant gas
- XSafe - Natural Sanitation System
- PWD-Progressive water discharge: pumps excess
- residual water up to a distance up to 15 meters
- Agion Technology resists the growth of microbes and
- the development of unpleasant odours
- Simple, reliable electromechanic controls
- Horizontal ice evaporator spray-system technology
- Resistant stainless steel exterior
- Front access condenser air filter, removable and washable
- Routine maintenance visible alarm light on front panel
- Ergonomically designed ice storage access with
- disappearing door and door closing movement
- dampening system
- Includes removable air filter, ice scoop, water and
- drain hose
- Ice production per 24 hours
- Ambient temperature / Water temperature
- Dimensions
- Width: 680mm
- Depth: 600mm
- Height: 1079mm (including legs)
- Nett weight: 77kg
- Packed weight: 82kg
- Water consumption
- Air cooled version: 8.8 litres per hour
- Electrical rating
- Air cooled version: 230-240V, 1P+N+E, 50Hz, 750W,
- 10A cordset supplied
- No. Circuit wire: 3
- Compressor: 1680W
- Energy consumption: 13.1kW/hr
- Refrigerant type
- R290
- Installation distance from wall
- Rear 100mm
- Sides 150mm
- Operating requirement air temperature 10-43oC
- Water connection requirements
- Inlet connection: R ¾”
- Cold water: 5-38°C
- Pressure: 100-500kPa
- Water outlet connection: ؾ”
- 3-Years of Warranty for Parts and Labour
Note: Ice production rate is measured with the water temperature at 10°C and an ambient temperature of 21°C.
