Scotsman 456kg - XSafe Modular Ice Dice Ice Maker (Head only) - NW 100
Hot
New
Call for stocks
Pre-order
Out Of Stock

Scotsman 456kg - XSafe Modular Ice Dice Ice Maker (Head only) - NW 1008 AS OX

$8,610.42 INC. GST


$ + GST

SKU: NW 1008 AS OX

BRAND: Scotsman

Hurry! Only 0 Left in Stock!

American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Check Delivery:

PRODUCT INFORMATION
Delivery Information
Warranty & returns
REVIEWS
PRODUCT INFORMATION

Scotsman 456kg - XSafe Modular Ice Dice Ice Maker (Head only) - NW 1008 AS OX

Model Number: NW 1008 AS OX
Dimensions: W: 760mm D: 620mm H: 800mm
Packed Weight: 112kg
Other models available:
  • NWH 1008 AS OX (Produces half dice ice cubes)
  • NWL 1008 AS OX (Produces large dice ice cubes)

 Model Ice Type


NW 1008 AS OX
(Dice Ice Cube Machine)

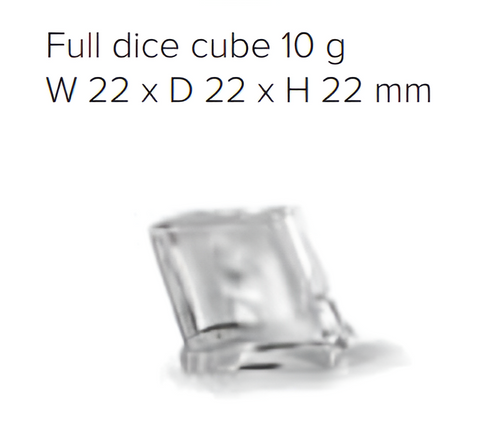

Dice cube 10g
W 22 x D 22 x H 22 mm


NWH 1008 AS OX
(Half Dice Ice Cube Machine)

Half dice cube 6g
W 10 x D 22 x H 28 mm

NWL1008 AS OX
(Large Dice Ice Cube Machine)


Large dice cube 15g
W 29 x D 22 x H 29 mm

Note: Ice production rate is measured with the water temperature at 10°C and an ambient temperature of 21°C.



Product Features
  • Head only Ice maker
  • 456kg daily production rate
  • W 22mm x D 22mm x H 22mm, 10g ice cubes
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • R404a refrigerant gas
  • XSafe - Natural Sanitation System
  • Vertical evaporator spray-system technology
  • Top air discharge - suitable for narrown space installation
  • Front evaporator access for easy servicing
  • One touch button for easy cleaning
  • T304 grade stainless steel exterior
  • Auto-alert indicator lights to show operation status and maintenance
  • Requires storage bin model NB 393, NB 530, NB 948 with CBT 48 EAMCD cover (required cover when used NB 948), UBH 1100
  • Includes removable air filter, water & drain hose

Optional extras:

  • KSC 1000 - stacking kit for NW 1008
  • UBH 1100 (553kg storage capacity) - $8,954.50 (inc GST)
  • NB 393  (179kg storage capacity) - $1,948.10 (inc GST)
  • NB 530 (243 kg storage capacity) - $2,082.30 (inc GST)
  • CBT 30 52 AMCD (Required cover with NB 393 storage bins) - $179.30 (inc GST)
Water consumption
Air cooled version: 16.9 litres per hour

Electrical rating
Air cooled version:
Single Phase: 230-240V, 1P+N+E, 50Hz, 2100W, 15A cordset supplied
Three Phase: 400-415V, 3P+N+E, 50Hz, 2500W, 10A

Energy consumption:
NW 507 AS: 21.1kW/hr
NWH 507 AS: 20.2kW/hr
NWL 507 AS: 19.9kW/hr

No. Circuit wire:
Single Phase: 3
Three Phase: 5

Compressor:
Single Phase: 7300W
Three Phase: 7300W

Energy consumption:
Single Phase: 45kW/hr
Three Phase: 23.1kW/hr

Installation distance from wall
Rear: 100mm
Sides: 150mm
Operating requirement air temperature: 10-43°C

Water connection requirements
Inlet connection: R ¾”
Cold water: 5-38°C
Pressure: 100-500kPa
Water outlet connection: : Ø 20mm



Best known for their reliability and affordability, Scotsman Ice Systems had a wide range to suit various industries

Scotsman is one of the first in the field to research and develop a range of affordable and reliable ice-making machines since the 1950's. It remains the world’s largest ice machine manufacturer in over 100 countries. From restaurants, bars or hotels, to laboratories, hospitals and food processing facilities, Scotsman Ice System serves an important role to cater the needs of different industries by combining efficiency and ease of maintenance in their affordable, innovative and reliable ice making systems.
