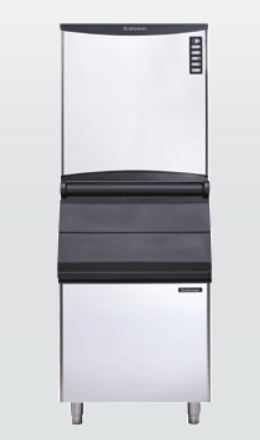

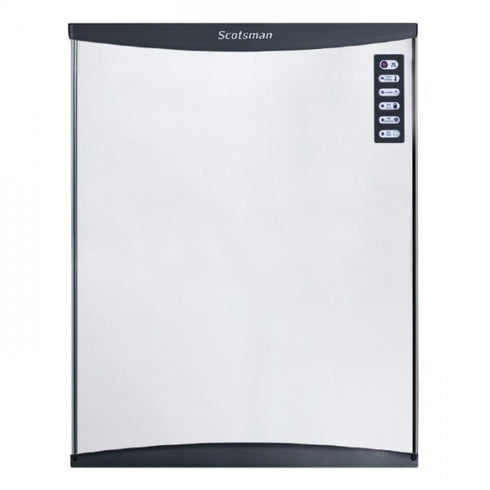

Scotsman XSafe Modular Ice Dice Ice Maker 630kg Production (Head only)
Hot
New
Call For Stock Levels
Pre-order
Out Of Stock

Scotsman XSafe Modular Ice Dice Ice Maker 630kg Production (Head only) - NWH 1408 AS OX

$10,437.15 EX GST
$11,480.87 inc. GST

SKU: NWL 1408 AS OX

BRAND: Scotsman

Hurry! Only 0 Left in Stock!

Dice Cube
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Visa

Estimate Delivery Cost:

PRODUCT INFORMATION
Delivery Information
Warranty & returns
REVIEWS
PRODUCT INFORMATION

Scotsman XSafe Modular Ice Dice Ice Maker 630kg Production (Head only) - NWH 1408 AS OX



Model Number: NWH 1408 AS OX
Dimensions: W: 760mm D: 620mm H: 1001mm
Packed Weight: 145kg

Other models available:

  • NWH 1408 AS OX (Produces half dice ice cubes)
  • NWL 1408 AS OX (Produces large dice ice cubes)
 Model Ice Type


NW 1408 AS OX
(Dice Ice Cube Machine)

Dice cube 10g
W 22 x D 22 x H 22 mm


NWH 1408 AS OX
(Half Dice Ice Cube Machine)

Half dice cube 6g
W 10 x D 22 x H 28 mm

NWL 1408 AS OX
(Large Dice Ice Cube Machine)


Large dice cube 15g
W 29 x D 22 x H 29 mm



Note: Ice production rate is measured with the water temperature at 10°C and an ambient temperature of 21°C.


Product Features
  • Head only Ice maker
  • 630kg daily production rate
  • W 10mm x D 22mm x H 28mm, 6g ice cubes
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • R404a refrigerant gas
  • XSafe - Natural Sanitation System
  • Vertical evaporator spray-system technology
  • Top air discharge - suitable for narrown space installation
  • Front evaporator access for easy servicing
  • One touch button for easy cleaning
  • T304 grade stainless steel exterior
  • Auto-alert indicator lights to show operation status and maintenance
  • Requires storage bin model NB 530, NB 948 with CBT 48 EAMCD cover (required cover when used NB 948), UBH 1100
  • Includes removable air filter, water & drain hose
  • Warranty: 3 years on parts and labour (except water filter)

Optional extras:

  • NB 530 (243 kg storage capacity) - $2,082.30 (inc GST)
  • NB 948 (406kg storage capacity) -  $10,534.7 (inc GST)
  • UBH 1100 (553kg storage capacity) - $8,954.50 (inc GST)
  • CBT 48 52 AMCD (Required cover with NB 948 storage bins) - $330 (inc GST)
Water consumption
Air cooled version:

NW 1408 AS: 31.1 litres per hour
NWH 1408 AS: 26.6 litres per hour
NWL 1408 AS: 27.6 litres per hour

Electrical rating
Air cooled version:
230-240V, 1P+N+E, 50Hz, 2100W, 20A cordset supplied

Energy consumption:
68kW/hr (NW 1408 AS)
60.8kW/hr (NWH 1408 AS)

Installation distance from wall
Rear: 100mm
Sides: 150mm
Operating requirement air temperature: 10-43°C

Water connection requirements
Inlet connection: R ¾”
Cold water: 5-38°C
Pressure: 100-500kPa
Water outlet connection: : Ø 20mm



Best known for their reliability and affordability, Scotsman Ice Systems had a wide range to suit various industries

Scotsman is one of the first in the field to research and develop a range of affordable and reliable ice-making machines since the 1950's. It remains the world’s largest ice machine manufacturer in over 100 countries. From restaurants, bars or hotels, to laboratories, hospitals and food processing facilities, Scotsman Ice System serves an important role to cater the needs of different industries by combining efficiency and ease of maintenance in their affordable, innovative and reliable ice making systems.
